System Viewer
System Viewer windows display information about peripheral registers. Use the System Viewer to:
- View peripheral register property values.
- View additional information about a property (red circle).
- Change property values at runtime. Click into the value-field and enter a new value.
-
Search for specific properties using the search field.
Enter TR1 Regular Expressions to narrow the selection and
press ENTER. For example:
Regular Expression Output .*[0-2] Returns properties that end with a number between zero and two. .*CCR* Returns properties that contain the string "CCR".
Open System Viewer windows from the
toolbar or from the menu View – System Viewer.

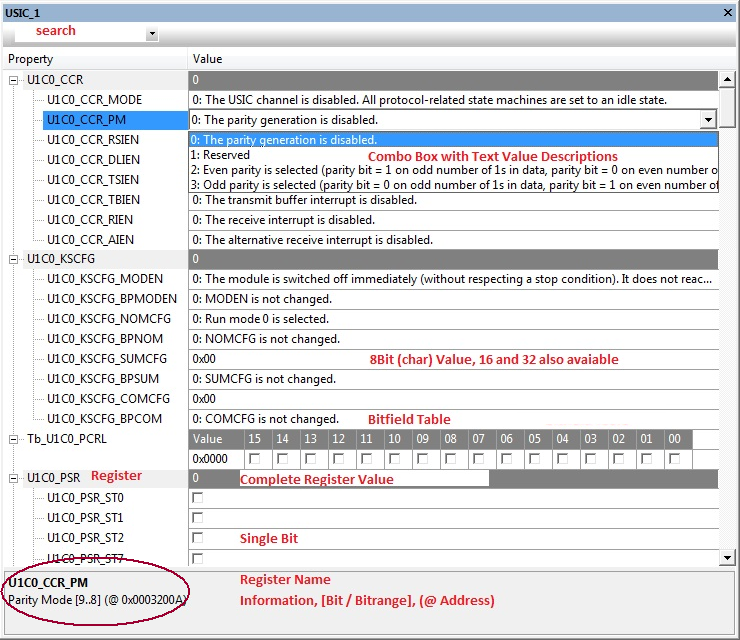

The picture below is a collage showing various value representations.
