Code Coverage

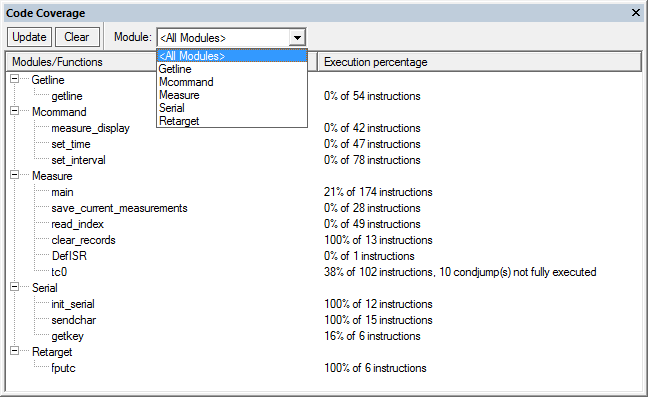

The Code Coverage dialog provides
statistics about the executed code. Use this information together
with the information from the Disassembly Window.
The statistics are updated automatically whenever the program is stopped.
- Update shows the latest statistics without stopping the program.
- Clear resets the statistics to zero.
- Module lists the individual functions included in the project.
Note
- Code coverage is possible for most devices when using the µVision Simulator.
- Refer to the debug command COVERAGE for showing code coverage on assembly level. Use Expressions describes the debug commands syntax and offers additional examples.
- For further statistics refer to Disassembly Window and Performance Analyzer.
