Configure SLIP Dial-up

Follow these steps to configure the SLIP dial-up.

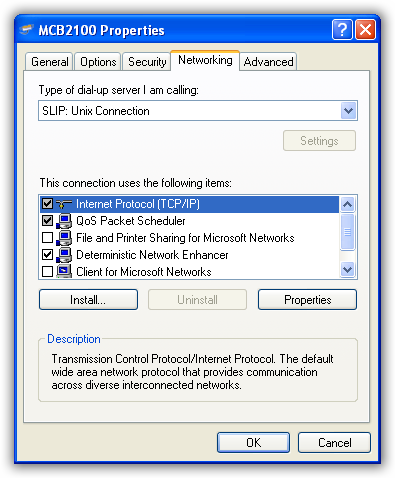

  1. Click the Networking tab in the Connection Properties dialog.
    Select SLIP from the drop-down menu for the "Type of dial-up server I am calling."
  2. Enable the Internet protocol (TCP/IP) option from the "Components checked are used by this connection" section. Then click the Properties button.

    Networking Settings

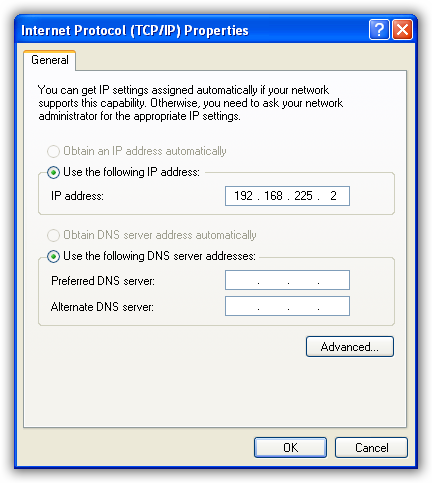

  3. On the General tab of the Internet Protocol (TCP/IP) Properties dialog, the "Use the following IP address" and "Use the following DNS server address" options are automatically selected because SLIP does not provide IP address negotiation.

    IP Settings

  4. Setup the SLIP IP address of your Windows SLIP Client and click OK to close the options dialog. The new dial-up connection is now ready for use.
