Long Reply

A long reply message requires multiple calls to the function tnet_process_cmd. Each call to this function generates part of the reply message until the entire message is generated and sent. To distinguish between different calls to the function, the argument pvar is used. This argument is a pointer to a variable that is set to 0 on the first call and not altered on each subsequent call to this function. The function's return value, which specifies the number of bytes in the reply message, cannot exceed 1500. Hence the high bits of the function's return value is used to store the flags:

  • Repeat flag - bit 14
    This flag tells the Telnet Server whether the function tnet_process_cmd must be called again or not (because the command processing is complete). The return value must be OR-ed with 0x4000 to call the function again.
  • Disconnect flag - bit 15
    This flag tells the Telnet Server to disconnect the telnet connection. If this flag is set, the Telnet Server disconnects the current Telnet session. The return value must be OR-ed with 0x8000 to disconnect.

In the following example, the MEAS command is given by the user using the Telnet client.

MCB2100> MEAS 100

When a new telnet command is received, the function tnet_process_cmd is called with the argument *pvar set to 0. The command buffer cmd is checked to identify the command.

U16 tnet_process_cmd (U8 *cmd, U8 *buf, U16 buflen, U32 *pvar) {

  switch (MYBUF(pvar)->id) {
    case 0:
      /* First call to this function, the value of '*pvar' is 0 */
      break;

    case 1:
      /* Repeated call, command 'MEAS' measurements display. */
        ..
      /* Request a repeated call, bit 14 is a repeat flag. */
      return (len | 0x4000);
        ..
  }

  /* Check if the command 'MEAS' is entered. */
  if (tnet_ccmp (cmd, "MEAS") == __TRUE) {
    MYBUF(pvar)->id = 1;
    if (len > 5) {
      /* We must be careful here, because data is overlaid. */
      sscanf ((const S8 *)&cmd[5], "%d", &temp);
      MYBUF(pvar)->nmax = temp;
    }
    len = str_copy (buf,(U8 *)meas_header);
    if (MYBUF(pvar)->nmax) {
      /* Bit 14 is a repeat flag. */
      len |= 0x4000;
    }
    return (len);
  }

When a command is recognized, you can reuse the same command buffer to store local variables, which might be needed in repeated calls. During the repeated call to this function, the cmd buffer is locked and is not altered by the system. You can use it as temporary storage of variables for the repeated calls. Each Telnet session has its own buffer of size 96 bytes. You can use only 95 bytes since the last byte is not available.

The above example uses 3 bytes of a storage variable pointed by pvar pointer for the following structure:

typedef struct {
  U8 id;
  U8 nmax;
  U8 idx;
} MY_BUF;
#define MYBUF(p)        ((MY_BUF *)p)

When the call to tnet_process_cmd() is repeated for the same command, the value of a storage variable pointed to by argument pvar is not altered anymore. You can use the value of *pvar to process the command differently. The *pvar buffer now holds the private structure MY_BUF, which is valid for the lifetime of processing the command. When the command processing is finished, this buffer is not used anymore until the next command.

U16 tnet_process_cmd (U8 *cmd, U8 *buf, U16 buflen, U32 *pvar) {

  switch (MYBUF(pvar)->id) {
    case 0:
      /* First call to this function, the value of '*pvar' is 0 */
      break;

    case 1:
      /* Repeated call, command 'MEAS' measurements display. */
      while (len < buflen-80) {
        /* Let's use as much of the buffer as possible. */
        /* This will produce less packets and speedup the transfer. */
        len += sprintf ((S8 *)(buf+len), "\r\n%4d", MYBUF(pvar)->idx);
        for (val = 0; val < 8; val++) {
          len += sprintf ((S8 *)(buf+len), "%7d", AD_in(val));
        }
        if (++MYBUF(pvar)->idx >= MYBUF(pvar)->nmax) {
          /* OK, we are done. */
          return (len);
        }
      }
      /* Request a repeated call, bit 14 is a repeat flag. */
      return (len | 0x4000);

    case 2:
      /* Repeated call, TCP status display. */
     ..
}

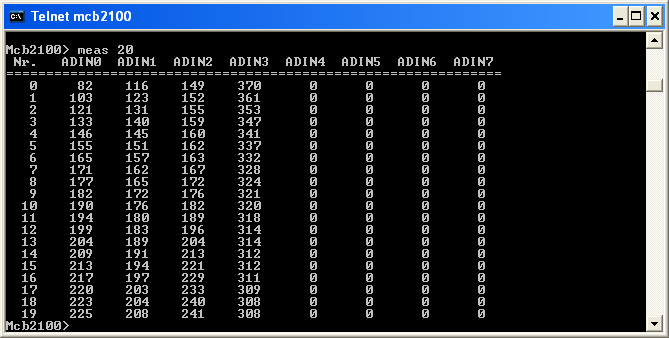

After giving a MEAS command, the Telnet Client screen looks like this:

Measure Command

Note

  • You can check the Telnet_demo example to see how the Telnet Server works. This example is located in the \Keil\ARM\Boards\Phytec\LPC229x\RL\TCPnet folder.
