Project Window

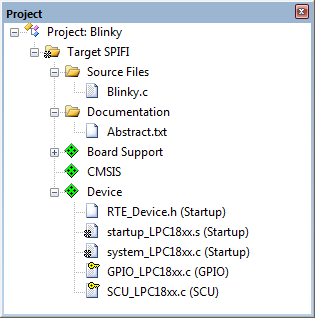

The Project window is the main management window for your application. The window shows the project hierarchy in the following order:

Icons identify the item type and permissions. Refer to File, Group, and Component Attributes for details.

Project Window

Developers can:

  • Drag & Drop files to another file group.
  • Drag & Drop files within a group to change the file order.
  • Rename the target and file group. Click on the item and press F2.
  • Double-click on the target name to open the linker mapping file.
  • Double-click on a file group to add files.
  • Double-click on a file name to open the file.
  • Delete items. Select a file group or file and press DEL to remove an object from the project. Files are not deleted from the project folder.

Each level has a common context menu that is adapted to the item. On each level, you can:

  • Set object properties.
  • Manage files and groups.
  • Build or rebuild all target files.
  • Show or hide dependent include files.

The Project window of a multi-project shows all included projects. The active project is highlighted in dark gray. All actions apply to the active project.

Project Window

The context menu allows you to:

  • Manage the multi-project workspace on WorkSpace level.
  • Set the active project on Project level.

See also:
