MCBSTM32C

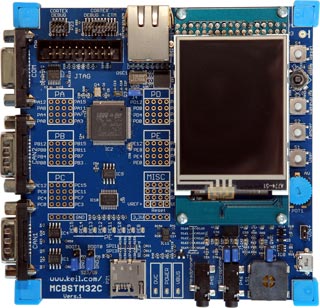

The Keil MCBSTM32C Evaluation Board enables you to create and test working programs based on the STMicroelectronics STM32 Connectivity Line family of ARM Cortex™-M3 processor-based devices.

Features

  • 72MHz STM32F107VC ARM Cortex™-M3 processor-based MCU in 100-pin LQFP
  • On-Chip Memory: 256KB Flash & 64KB RAM
  • External Memory: 8KB I2C Flash
  • Color QVGA TFT LCD with touchscreen
  • 10/100 Ethernet Port
  • USB 2.0 Full Speed - USB, USB-OTG, & USB Host
  • 2 CAN Interfaces
  • Serial/UART Port
  • MicroSD Card Interface
  • 5-position Joystick and push-button
  • 3-axis Motion sensor / Accelerometer
  • Analog Voltage Control for ADC Input
  • Audio CODEC with Line-In/Out and Speaker
  • 80 GPIO pins
  • Debug Interface Connectors
    • 20 pin JTAG (0.1 inch connector)
    • 10 pin Cortex debug (0.05 inch connector)
    • 20-pin Cortex debug + ETM Trace (0.05 inch connector)RoHS compliance

Evaluation Software

The MCBSTM32C Evaluation Board and Starter Kit include the MDK-Lite development tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCBSTM32C and a Quickstart guide are included.

Ordering Information


The MCBSTM32C is available as a stand alone evaluation board or as a starter kit which includes the
ULINK-ME debug adapter.

  • MCBSTM32C: MCBSTM32C evaluation board
  • MCBSTM32CUME: MCBSTM32C starter kit (includes ULINK-ME)
