Trace Recording

The menu View - Trace - Enable Trace Recording starts to record executed instructions.

View Trace Button

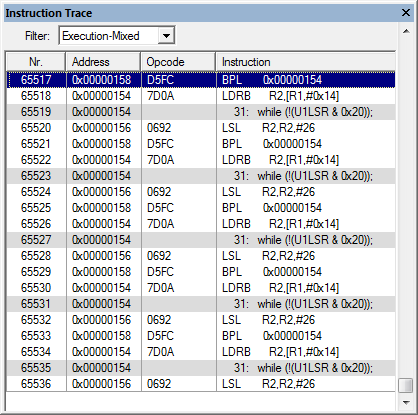

Open View - Trace - Instruction Trace to view the instructions.

Trace Disassembly Window

For C51 or C166 microcontrollers, view the instruction history in the window Disassembly.

Trace Disassembly Window

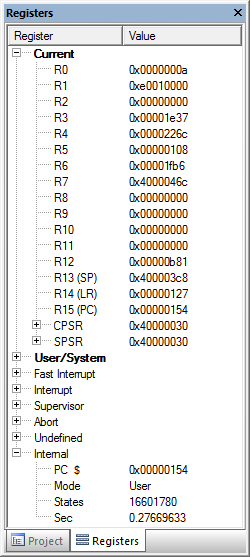

The window Registers shows the CPU register contents.

Trace Project Window
