USB Host Mass Storage

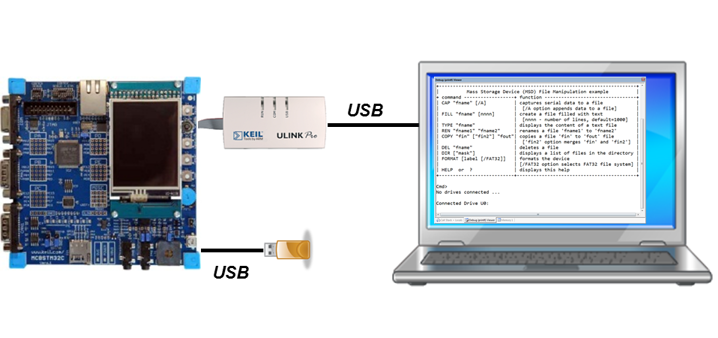

The following example application shows how to connect an USB mass storage device to a development board. As with the previous example, all output will be redirected to the Debug (printf) Viewer window. The online help explains how to connect your stdio to the Debug (printf) Viewer window. The following picture shows an exemplary connection of the development board and an USB memory stick.


The Abstract.txt file contained in the Documentation group of the Project window gives you more information on the general setup and the available I/O of the development board.

Build the "USB Host Mass Storage" Project

Open the example project in MDK (the Pack Installer's web page explains how to do this). The µVision Project window should display a similar project structure:

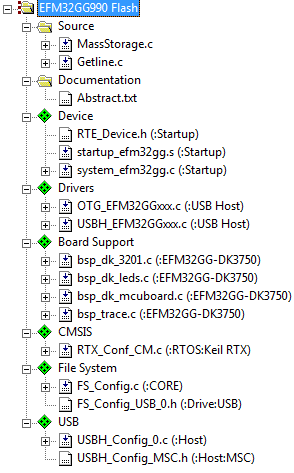

USB Host Mass Storage Project Structure

Source Files

  • MassStorage.c contains the main C function that initializes the board hardware, the flash storage device and the USB Host Component. Also, all commands that can be used over the command line interface are defined here.
  • The Getline.c file contains the function for getting formatted input from stdio.

You may now build and download the example project to the evaluation board using the µVision commands:

  • Project –> Build target (F7)
  • Flash   –> Download (F8)
  • Debug –> Start/Stop Debug Session (Ctrl + F5)
  • Debug –> Run (F5)

After these steps, the project should start executing on your evaluation kit. In case of errors, refer to the Evaluation Board User's Guide for configuration information.

Using the "USB Host Mass Storage" Project

Hardware Setup

The setup of the Evaluation Board hardware is described in the Abstract.txt file.

  • Verify all jumper settings on the target hardware.
  • Simply connect an USB memory stick to one of the development board's USB connectors.
  • You need to have an ULINK connection to the development board as the command line is sent to the Debug (printf) Viewer window of an active Debug session.

PC Software

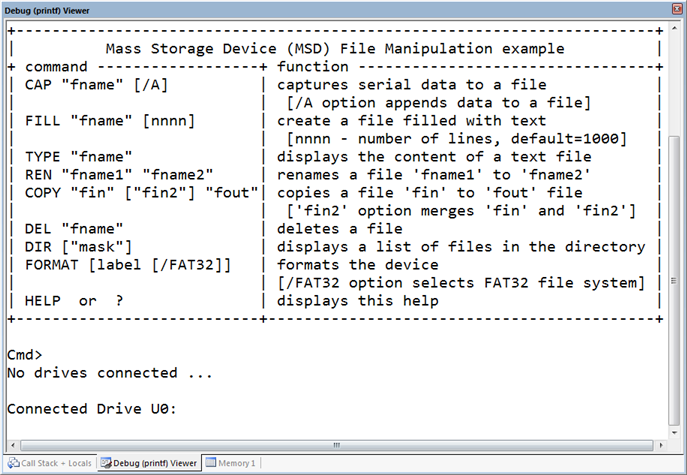

After building the program, download the code into Flash and start a Debug session. Open the Debug (printf) Viewer window and start the code execution by either pressing F5 or using the Run button. You should now see something similar like this:
