The USB Component is designed to create USB Device and USB Host applications and is part of MDK-Professional. The USB Protocol is handled by the USB Component, so that developers can focus on their application needs.

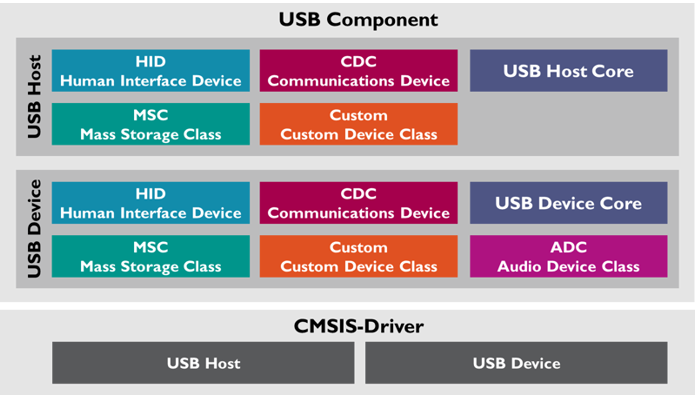

Structure of the USB Component

The USB Component is structured as follows:

USB Host is used to communicate to other USB Device peripherals over the USB bus.
USB Device implements a device peripheral that can be connected to an USB Host.
The following USB Classes are supported:
- Human Interface Device (HID)
- Mass Storage Class (MSC)
- Communication Device Class (CDC)
- Audio Device Class (ADC) (USB Device only)
- Custom Class (for implementing new or unsupported USB Classes)
Composite USB Devices supporting multiple device classes can also be implemented.
CMSIS-Driver for USB Host and USB Device provide the interface to the microcontroller peripherals.

Documentation

This user's guide contains the following chapters:

USB Device explains how to implement a USB Device with a microcontroller.
USB Host explains how to implement a USB Host with a microcontroller.
USB Concepts contains general information about USB.
Supported USB Classes provides details about the supported USB Device Classes.
Resource Requirements shows the configuration of system resources for USB in detail.

The USB-IF Developers Area contains the complete USB 2.0 Specification and additional information that is referenced in this user's guide.
