Configuration

Configuration of the USB Device ADC Class in µVision. More...

Configuration of the USB Device ADC Class in µVision.

This configuration file defines:

• The assignment of the ADC class to the USB Device instance.
• USB Endpoint assignments for the ADC class with parameters for Full/Low-speed communication.
• Class Settings for the Interface Descriptor.

The settings in this configuration file are used to create the Interface Descriptor and Endpoint Descriptor of the related USB Device Class. It is important that the settings match the application specific behavior in the related C source file USBD_User_ADC_n.c.

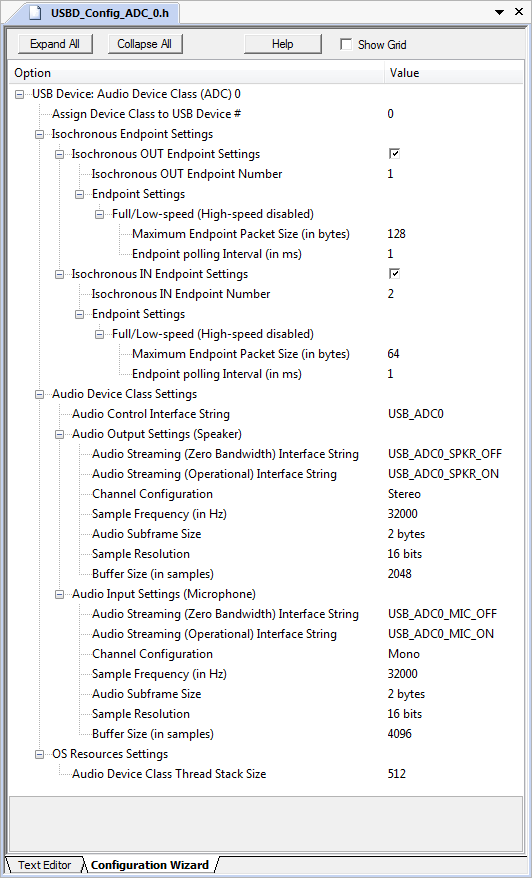

ADC Class Configuration File

The USB Device ADC Class configuration file USBD_Config_ADC_n.h contains the following settings:

• Assign Device Class to USB Device # selects the USB Device that is to be used for this Device Class instance.
• Isochronous Endpoint Settings
  • Isochronous OUT Endpoint Settings enables or disables settings for an Isochronous OUT Endpoint.
    • Isochronous OUT Endpoint Number sets the number of the endpoint to be used. Conflicting settings are flagged by compile-time error messages.
    • Endpoint Settings
      • Maximum Endpoint Packet Size (in bytes) specifies the physical packet size used for information exchange.
      • Endpoint polling Interval (in ms) specifies the frequency of requests initiated by USB Host for getting audio samples data.
  • Isochronous IN Endpoint Settings enables or disables settings for an Isochronous IN Endpoint.
    • Isochronous IN Endpoint Number sets the number of the endpoint to be used. Conflicting settings are flagged by compile-time error messages.
    • Endpoint Settings
      • Maximum Endpoint Packet Size (in bytes) specifies the physical packet size used for information exchange.
      • Endpoint polling Interval (in ms) specifies the frequency of requests initiated by USB Host for getting audio samples data.
• Audio Device Class Settings
  • Audio Control Interface String is used to create USB Descriptors.
  • Audio Output Settings (Speaker)
    • Audio Streaming (Zero Bandwidth) Interface String is used to create USB Descriptors.
    • Audio Streaming (Operational) Interface String is used to create USB Descriptors.
    • Channel Configuration is used for memory allocation in the USB component.
    • Sample Frequency (in Hz) is used for memory allocation in the USB component.
    • Audio Subframe Size is used for memory allocation in the USB component.
    • Sample Resolution is used for memory allocation in the USB component.
    • Buffer Size (in samples) is used for memory allocation in the USB component.
  • Audio Input Settings (Microphone)
    • Audio Streaming (Zero Bandwidth) Interface String is used to create USB Descriptors.
    • Audio Streaming (Operational) Interface String is used to create USB Descriptors.
    • Channel Configuration is used for memory allocation in the USB component.
    • Sample Frequency (in Hz) is used for memory allocation in the USB component.
    • Audio Subframe Size is used for memory allocation in the USB component.
    • Sample Resolution is used for memory allocation in the USB component.
    • Buffer Size (in samples) is used for memory allocation in the USB component.
• OS Resource Settings
  • Audio Device Class Thread Stack Size is used for memory allocation in the USB component.
