Flash File System
RL-Flash
Flash File System

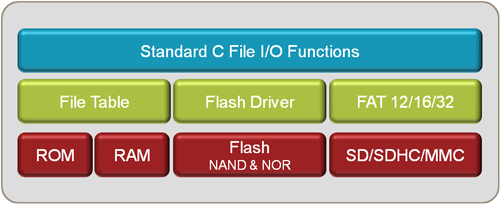

| Standard C File I/O Functions | |||
| File Table | Flash Driver | FAT12/16 | |
| ROM | RAM | Flash ROM | SD/MMC |
RL-ARM includes a Flash File System (RL-Flash) that allows your embedded applications to create, save, read, and modify files in ROM, RAM, classic Flash ROM, and Memory Cards.
- Classic C File I/O Functions Interface To...
- RAM or ROM Images
- Standard Flash ROM
- SD or MMC Memory Cards
- Standard Flash ROM
- Configurable algorithm similar to ULINK Flash Programming
- Lightweight interface with few hardware requirements
- SD/MMC Memory Cards
- Via proven SPI or MMC interface—available in many ARM-based Microcontrollers
- Format Function and Time Stamps (interface to RTC required)
- Uses FAT12 or FAT16 Flash File System (8.3 filename conventions)
Note
- The RealView MDK-ARM includes the RTX Real-Time Kernel but not the RTX Real-Time Kernel Source Code, Flash File System, or TCP/IP Stack.
