RL-USB Host Configuration

RL-USB Host Configuration explains the options offered by the RL-USB Library for configuring USB Host devices. The options can be configured in the file usb_config.c directly or using the µVision Configuration Wizard.

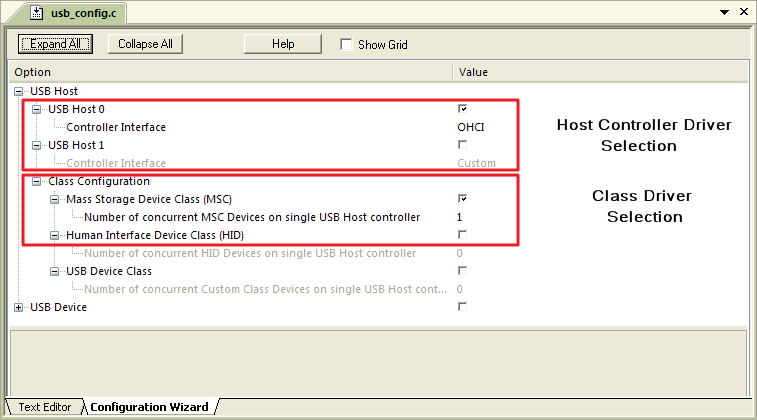

RL-USB Host Configuration Wizard

USB Host 0 enables the USB Host 0 functionality. This options corresponds to #define USBH0_ENABLE.

#define USBH0_ENABLE                  1                             // 0 = disabled, 1 = enabled

USB Host 1 enables the USB Host 1 functionality. This options corresponds to #define USBH1_ENABLE.

#define USBH1_ENABLE                  0                             // 0 = disabled, 1 = enabled

The USB Host Controller configuration can be split into three main groups:

  1. Host Controller Driver Selection, which offers:
    • USB Host Controller enable.
    • USB Host Controller Interface selection.
  2. Host Controller Driver Configuration
  3. Host Class Driver Selection, which enables class support.
