Getting Started

To run this RL-CAN TMPM36x example on a board, ensure you have:

  • an MCBTMPM360 Evaluation board from Keil
  • a ULINK® USB Interface Adapter from Keil
  • a USB cable for 5 V power supply.
  1. Copy the example from  \Keil\ARM\Boards\Keil\MCBTMPM360\RL\CAN\CAN_Ex1 or from \Keil\ARM\Boards\Keil\MCBTMPM360\RL\CAN\CAN_Ex2 to any directory you want to use.
  2. Load the project CAN_Ex1.uv2 or CAN_Ex2.uv2 file from the copied directory into µVision® 4 IDE (Project —> Open Project...)

    Open Project from Menu

    Select Project File
  3. Rebuild the executable file from source files. Click on Project —> Rebuild all target files on the menu or click on the toolbar button .

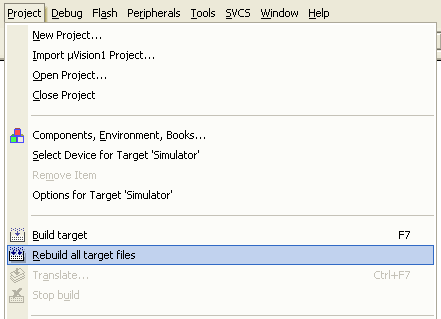

    Rebuild on Project Menu
  4. Connect the ULINK device to the PC's USB port and to the Cortex Debug Connector on the MCBTMPM360 board.

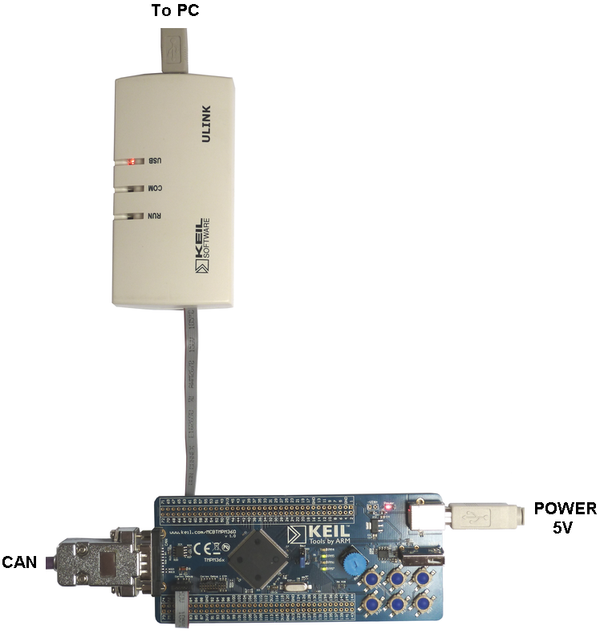

    Board with ULINK
  5. Power-up the MCBTMPM360 board by connecting the board's USB power input to the PC's USB port.
  6. Click on Flash —> Download on the menu to download the executable file to the TMPM364 flash target on the MCBTMPM360 board.

    Flash Menu
  7. Press button PJ4 and keep it pressed while resetting the board (to enable loopback mode in which everything that is sent on CAN is also received).
  8. Rotate the potentiometer and watch the the state of the LEDs change according to the position of the potentiometer.
