ULINK-ME Debug Adapter

ULINK-ME Debug Adapter

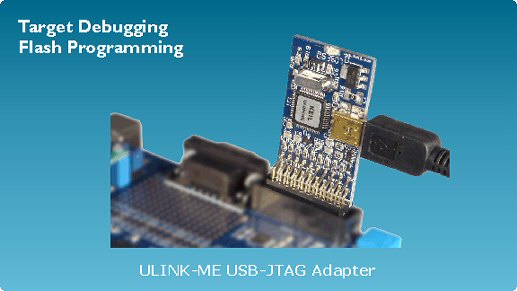

The new ULINK-ME Debug Adapter now supports the 10-pin Cortex Debug Connector available on the latest Keil Evaluation boards. The ULINK-ME connects your PC's USB port to your target system (via JTAG or SWD) and allows you to program and debug embedded programs on the target hardware.

ULINK-ME Features:

  • JTAG speed up to 10MHz
  • Serial Wire Debug (SWD) support for ARM Cortex-M based devices
  • Serial Wire Viewer (SWV) Data Trace for Cortex-M3 and Cortex-M4
  • Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output
  • Seamless integration with the Keil µVision IDE & Debugger
  • Target Voltage: 3.0V - 3.6V
  • USB powered (no power supply required)
  • Plug-and-Play installation using standard Windows USB drivers
  • Target Connectors
    • 10-pin (0.05") - Cortex Debug Connector
    • 20-pin (0.10") - ARM Standard JTAG Connector

ULINK-ME may be used for:

Using the ULINK-ME adapter together with the Keil µVision IDE/Debugger, you can easily create, download, and test embedded applications on target hardware.

Notes Note

  • For a short period the previous version of ULINK-ME will be shipped with starter kits which require only the 20-pin ARM Standard JTAG Connector.
  • ULINK-ME is only delivered and supported as part of Keil or OEM Starter Kits. It is not guaranteed to work with custom hardware.
  • Support for ULINK-ME is available in:
    • MDK v3.04 or higher,
    • C51 v8.15 or higher.
