Audio Output

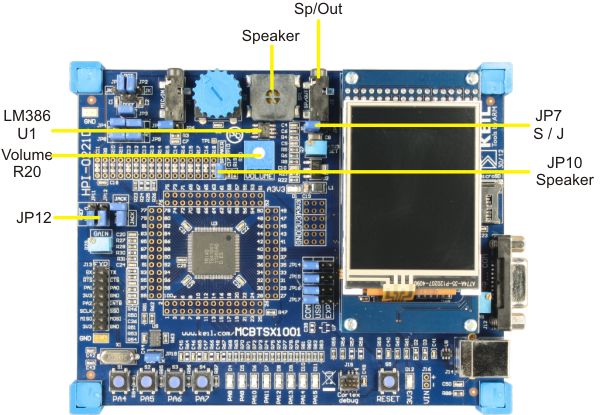

The MCBTSX1001 board supports Audio Output from the on-chip DAC and op-amps with a low power LM386 amplifier (U1) controlled by the volume control at R20 and enabled by installing jumper JP10.
The S position of jumper JP7 directs the audio output to the on-board speaker. The J position of jumper JP7 directs the audio output to the headphone jack (Sp/Out).
When set to 0, jumper JP12 supplies a 1.2 bandgap buffered voltage reference for the single-ended amplifier SEOA0. When set to 1 jumper JP12 supplies a VDD/2 (1.65) buffered voltage reference.
