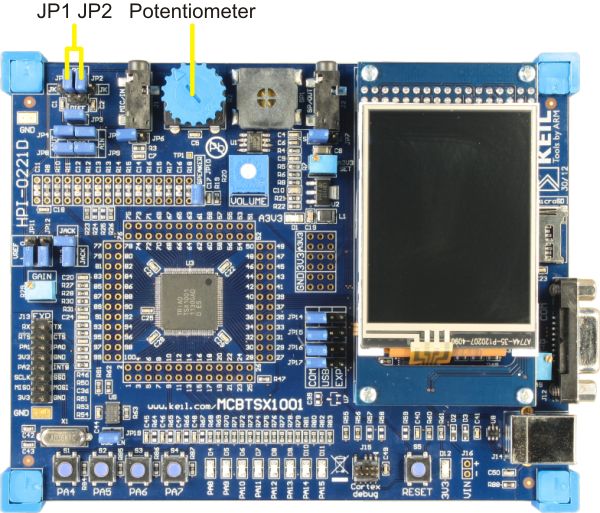

When jumpers JP1 and JP2 are in the POT position, the potentiometer on the MCBTSX1001 board connects as input to the ADC via the on-chip fully differential op-amp FDOA1. The voltage range is 0.0-3.3 Volts.
