LEDs

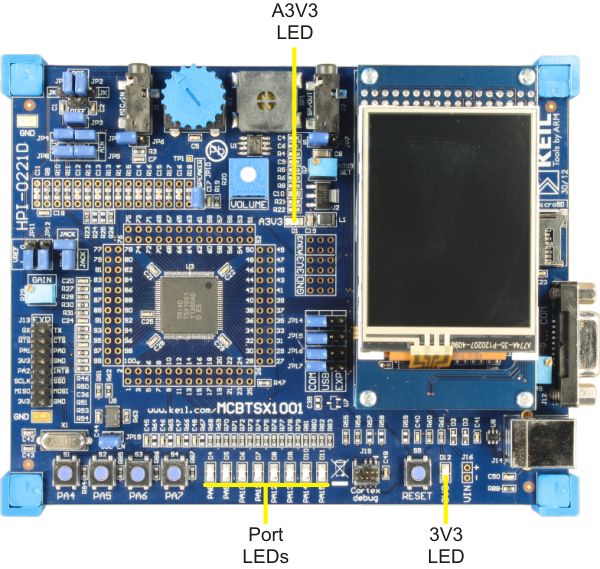

The MCBTSX1001 board has the following LED indicators:
- The 3V3 LED indicates that 3.3V power is present on the board.
- The A3V3 LED indicates that 3.3V analog power is present on the board.
- The 8 Port LEDs marked PA8 - PA15 connect to their respective port pins when jumper LED is installed. These LEDs are useful for indicating program status while testing your applications.
