Peripheral Simulation

For STMicroelectronics STR912FW44 — I�C Interface 0-1

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.
• VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

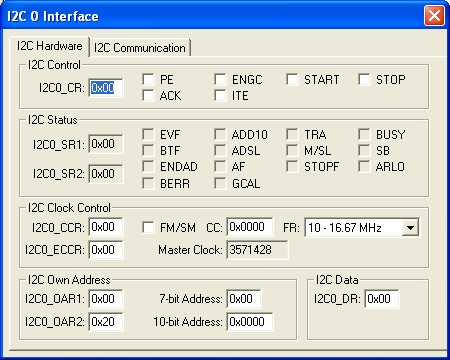

I2C Communication 0 Dialog

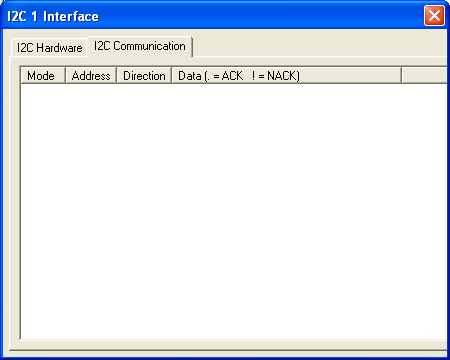

I2C Communication 1 Dialog

I2C Control 0 Dialog

I2C Control 1 Dialog

I2C0 Input VTREG
Data Type: unsigned short

I2C0 Output VTREG
Data Type: unsigned short

I2C1 Input VTREG
Data Type: unsigned short

I2C1 Output VTREG
Data Type: unsigned short
