Peripheral Simulation

For Atmel T8xC251A1 — Event and Waveform Controller (PCA + Enhanced PCA)

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.

These simulation capabilities are described below.

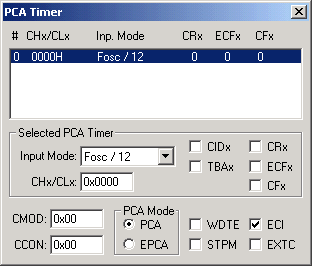

Programmable Counter Array Dialog
