The Luminary LM3S811 Evaluation Board works with the ULINKpro USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

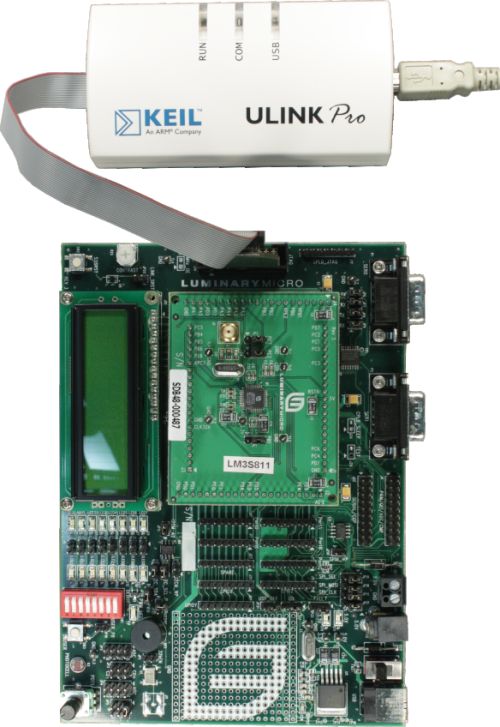

ULINKpro Adapter Connected to the LM3S811 Board

To download and run an example project:

1. Connect the 20-pin ribbon connector from the ULINKpro Adapter to the JTAG connector on the Luminary LM3S811 evaluation board.
2. Connect the power adapter included with the kit to the board at J1.
3. Start µVision.
4. Select the DEMO.UV2 example project from C:\KEIL\ARM\BOARDS\LUMINARY\DK-LM3S811\BLINKY\.
5. Click the Download button to download the program to the target board.
6. Click the Debug button to start the debugger.
7. Click the Run button to start the program running on the target board.
