The Keil MCBSTM32E Evaluation Board works with the ULINKpro USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

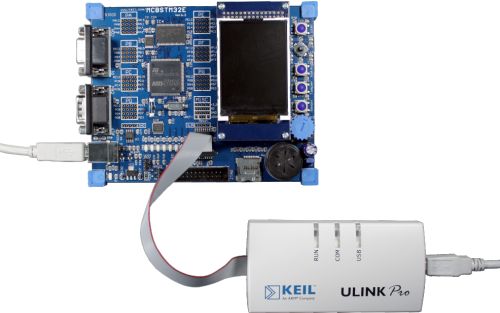

ULINKpro Adapter Connected to MCBSTM32E

To download and run an example project using ULINKpro with the Keil MCBSTM32E Board:

1. Connect the 20-pin ribbon connector from the ULINKpro Adapter to the TRACE connector MCBSTM32E evaluation board.
2. Make sure that jumpers VUSB, BOOT0 and BOOT1 are either not installed or set to GND.
3. Connect power to the board using using a standard USB cable. Connect the other end of this cable to an unused USB port on your PC.
4. Start µVision.
5. Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCBSTM32E\BLINKY_ULp\.
6. Click the Download button to download the program to the target board.
7. Click the Debug button to start the debugger.
8. Click the Run button to start the program running on the target board.
