The Phytec XC16x Evaluation Boards work with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

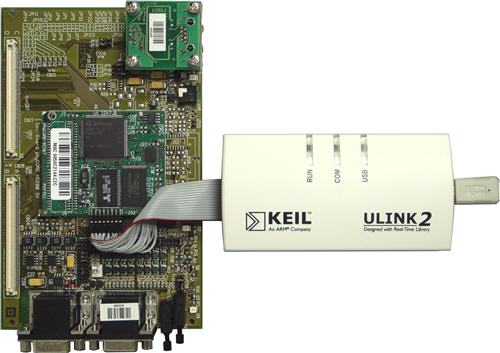

ULINK2 Adapter Connected to the Phytec XC16x Board

To download and run an example project using ULINK2 with the Phytec XC16x Board:

1. Connect the 16-pin ribbon connector from the ULINK2 Adapter to the OCDS connector on the Phytec phytec_xc16x evaluation board.
2. Connect the power adapter to the board.
3. Start µVision.
4. Select the BLINKY.UV2 example project from root\C166\BOARDS\PHYCORE XC16x\.
5. Click the Download button to download the program to the target board.
6. Click the Debug button to start the debugger.
7. Click the Run button to start the program running on the target board.
