The Keil MCB2103 Evaluation Board works with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

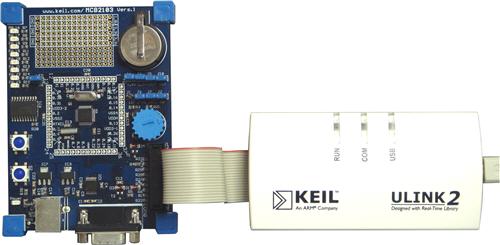

ULINK2 Adapter Connected to MCB2103

To download and run an example project using ULINK2 with the Keil MCB2103 Board:

1. Connect the 20-pin ribbon connector from the ULINK Adapter to the JTAG port MCB2103 evaluation board.
2. Make sure that Jumper J9 - JTAG is ON.
3. Connect power to the board using a standard USB cable. Connect the other end of this cable to an unused USB port on your PC.
4. Start µVision.
5. Select the BLINKY.UV2 example project from root\ARM\BOARDS\KEIL\MCB2103\BLINKY\.
6. Click the Download button to download the program to the target board.
7. Click the Debug button to start the debugger.
8. Click the Run button to start the program running on the target board.
