Freescale MAC7100

Home

The Freescale MAC7100 Evaluation Board works with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

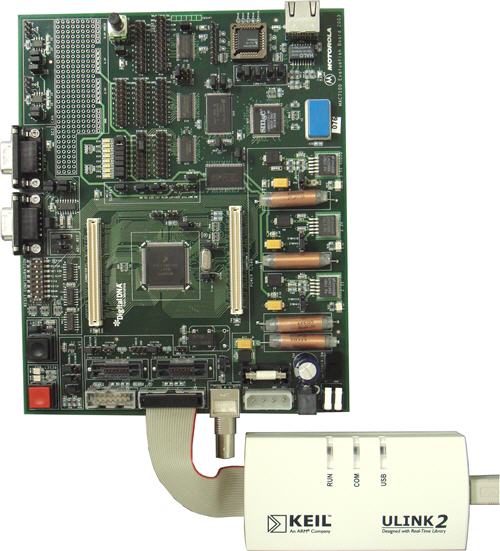

ULINK2 Adapter Connected to MAC7100

To download and run an example project using ULINK with the Freescale MAC7100 Board:

1. Connect the 20-pin ribbon connector from the ULINK Adapter to the JTAG port MAC7100 evaluation board.
2. Connect the power adapter to the board.
3. Start µVision.
4. Select the BLINKY.UV2 example project from root\ARM\BOARDS\FREESCALE\MAC7100\BLINKY\.
5. Click the Download button to download the program to the target board.
6. Click the Debug button to start the debugger.
7. Click the Run button to start the program running on the target board.
