After you have built the HELLO program and downloaded it to the target system, view the serial output using Microsoft Windows Hyperterminal. Select Start - Programs - Accessories - Communication - Hyperterminal.
-

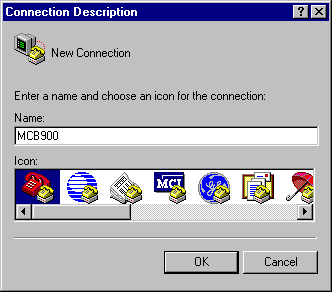

Enter a Name for the new connection, for example:
MCBTMS570.
-
Select the PC COM port COM1 under Connect
Using.
-
Select 9600 Bits per second, 8 Data bits, Parity
None, Stop bits 1 and Flow control None.
-

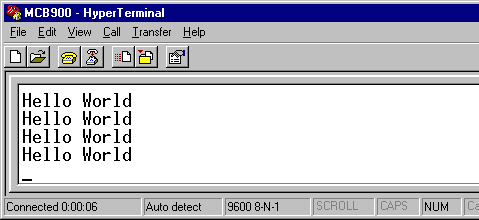

Click OK. You should receive Hello World messages from the MCBTMS570 board.
