ULINK Family of Debug and Trace Adapters

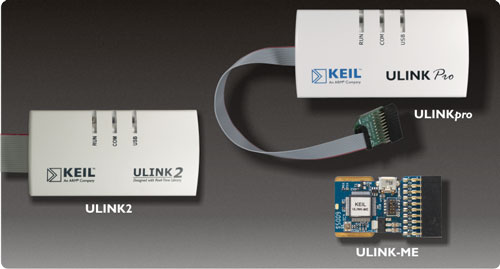

ULINK Family of Debug Adapters

The Keil ULINK family of Debug Adapters connect your PC's USB port to your target system (via JTAG or similar debug interface) and allow you to debug embedded programs running on target hardware.

All ULINK adapters enable you to:

  • Download programs to your target hardware
  • Examine memory and registers
  • Single-step through programs and insert multiple breakpoints
  • Run programs in real-time
  • Program Flash Memory
  • Connect using JTAG or Serial Wire modes
  • On-the-fly debug of ARM Cortex-M based devices
  • Examine Trace information from ARM Cortex-M3 and Cortex-M4 devices

    See a comparison of all ULINK adapters

Delivers real-time data and instruction trace streaming via USB. ULINKpro supports:

  • ARM7, ARM9, and Cortex-M devices
  • Data and Instruction Trace for Cortex-M systems
  • Sophisticated application analysis including execution profiling and code coverage
  • High-Speed Flash Download

Replaces the original ULINK adapter.

  • Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices

Offers a subset of the ULINK2 features:

  • Supports ARM7, ARM9, and Cortex-M devices
  • Delivered and supported only as part of Keil or OEM Starter Kits
  • Standard 20-pin (0.1") JTAG and 10-pin (0.05") Cortex Debug connectors

Notes Note

  • The original ULINK has been replaced by ULINK2.
