Peripheral Simulation

For Cadence Design Systems Inc. R8051XC2 (1 DPTR) — I2C Interface 1

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.

These simulation capabilities are described below.

Secondary I2C Communication Dialog

Secondary I2C Communication

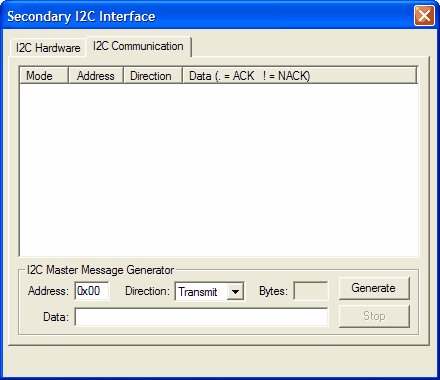

The Secondary I2C Communication dialog displays the I2C communication activity on the secondary I2C bus. The message Mode, Address, Direction and data message content are displayed for each message. To clear the message display, double-click anywhere in the message display area.

Secondary I2C Interface Dialog

Secondary I2C Interface

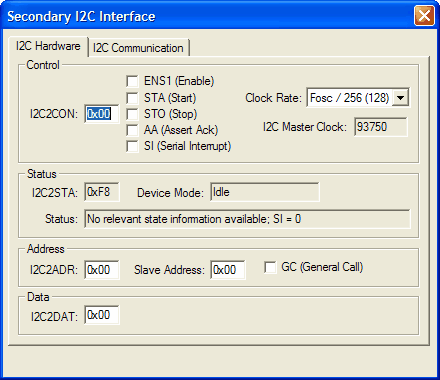

The I²C Hardware Interface dialog displays all configuration options for the secondary on-chip I²C controller. You may interactively alter and view these options using the dialog controls.

Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
