Peripheral Simulation
For STMicroelectronics STR755FR2 — Power, Reset and Clock Control Unit (PRCCU)
Simulation support for this peripheral or feature is comprised of:
- Dialog boxes which display and allow you to change peripheral configuration.
- VTREGs (Virtual Target Registers) which support I/O with the peripheral.
These simulation capabilities are described below.

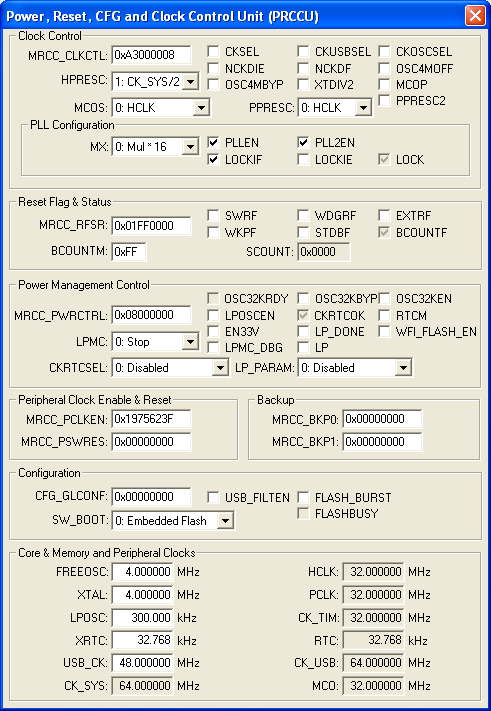

Power, Reset , CFG and Clock Control Unit (PRCCU) Dialog

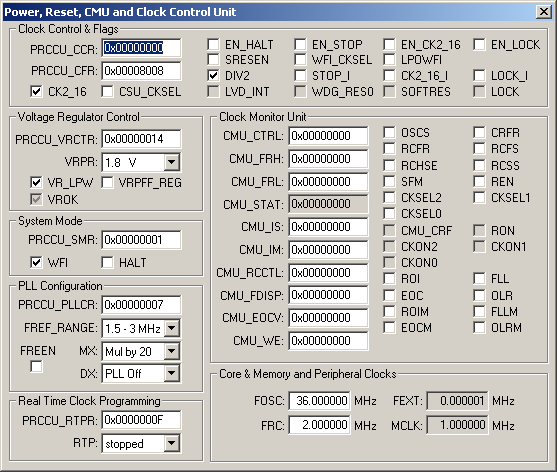

Power, Reset and Clock Control Unit (PRCCU) Dialog
The Power, Reset, CMU and Clock Control Unit dialog configures the
power saving mode, clock dividers, boot configuration and the core,
memory and peripheral clocks of the ARM controller.
Clock Control & Flags
-
PRCCU_CCR (Clock Control Register) contains the clock
control bits.
-
PRCCU_CFR (Clock Flag Register) contains the clock
indicator flag bits.
-
CK2_16 (CLK2/16 Select) when set, uses CLK2 (or PLL
output depending on CSU_CKSEL) as the source of RCLK. If reset,
CLK2 divided by 16 is used.
-
CSU_CKSEL (CSU Clock Select) uses the clock from the PLL
multiplier for the system clock when LOCK and VROK are set.
-
EN_HALT (Enable Halt) allows the HALT bit to stop the
MCU or generate a software reset.
-
SRESEN (Software Reset Enable) allows a software reset
(HALT bit in PRCCU_SMR) if EN_HALT is also set.
-
DIV2 (OSCIN Divided by 2) is set to divide CLK by
2.
-
LVD_INT (Internal LVD Reset Flag) indicates that an
internal LVD reset occurred.
-
EN_STOP (Stop Interrupt Masking Bit) enables
the stop interrupt request.
-
WFI_CKSEL (Wait For Interrupt Clock Select) is set to
use CK_AF for MCLK during Low Power WFI, otherwise use CLK2/16
during Low Power WFI. Setting this bit effectively enables CKAF_SEL
in WFI mode.
-
STOP_I (Stop Interrupt Pending) is set when a Stop
Interrupt request is pending.
-
WDG_RES0 (Watchdog Reset Flag) is set when a watchdog
reset occurs.
-
EN_CK2_16 (CK2_16 Interrupt Masking Bit) enables the
CK2_16 interrupt request.
-
LPOWFI (Low Power Mode During Wait For Interrupt) is set
to force the device into Low Power Mode when an Wait For Interrupt
(WFI) instruction executes.
-
CK2_16_I (CK2_16 Switching Interrupt Pending) is set
when a C2_16 Switching Interrupt request is pending.
-
SOFTRES (Software Reset Flag) is set when a software
reset occurs.
-
EN_LOCK (Lock Interrupt Masking Bit) enables the LOCK
interrupt request.
-
LOCK_I (Lock Interrupt Pending) is set when a Lock
Interrupt request is pending.
- LOCK (PLL Locked) is set when the PLL is locked.
Voltage Regulator Control
-
PRCCU_VRCTR (Voltage Regulator Control Register)
contains the following control bits:
-
VRPR (Voltage Regulator Power Reference) selects the
voltage regulator reference voltage.
-
VR_LPW (Voltage Regulator for Low Power WFI) is set to
keep the voltage regulator on when the system enters low power
mode.
-
VROFF_REG is set to indicate the voltage regulator is
off.
-
VROK (Main Regulator OK) is set when the main voltage
regulator is stable.
System Mode
-
PRCCU_SMR (System Mode Register) contains the following
control bits:
-
WFI (Wait For Interrupt Mode) is set by the hardware to
indicate an interrupt request is acknowledged by the External
Interrupt Controller(EIC).
-
HALT (Halt) when set, generates a software reset if
SRESEN and ENHALT bits are set.
PLL Configuration
-
PRCCU_PLL1CR (PLL 1 Configuration Register) contains the
following control bits:
-
FREEN (PLL Free Running Mode Enable) if set in
conjunction with DX, provides a slow frequency back up clock
selected by the CSU_CKSEL. If reset, the PLL uses the MX and DX
settings.
-
FREF_RANGE (Reference Frequency Range Select) is set to
configure the PLL for CLK2 frequencies greater than 3MHz. If reset,
CLK2 frequencies between 1.5MHz and 3MHz may be used.
-
MX (PLL Multiplier) selects the multiplier (12, 16, 20
or 24) for the PLL.
-
DX (PLL Output Clock Divisor) selects the PLLCK divisor
(1-7).
Real Time Clock Programming
-
PRCCU_RTPR (Real Time Clock Program Register) contains
the following:
-
RTP (Real Time Clock Programming) selects the divisor
factor that determines the real-time clock frequency.
Clock Monitor Unit
-
CMU_CTRL (Control Register) contains the following
control bits:
-
OSCS( Oscillator Stop bit) is set to stop the mail
oscillator.
-
RCFR (RC oscillator Frequency in Run mode) is set to
select the RC oscillator in run mode.
-
RCHSE (RC oscillator Hardware Stop Enable bit) is set to
stop the RC oscillator the next time the device enters the Stop
mode.
-
SFM (Start Frequency Measurement) is set to start clock
frequency measurement.
-
CRFR (CMU Reset Flag Reset bit) is set to clear the CMU
Reset Flag.
-
RCFS (RC oscillator Frequency in Stop mode) is set to
select the RC oscillator frequency the next time the device enters
the Stop mode
-
RCSS (RC oscillator Software Stop) is set to stop the
backup oscillator.
-
REN (CMU Reset Enable) is set to allow a reset when the
CMU Reset On(RON) bit is set.
-
CKSEL1 (CMU clock selection) selects which frequency (RC
or OSC) drives the CMU.
-
CKSEL2 (Oscillator-PLL selection) selects which
frequency (RC or OSC) drives the PLL.
-
CKSEL3 (RC-Oscillator selection) selects which frequency
(RC or OSC) drives the clock out (CKOUT) signal.
-
CMU_FRH (Frequency Reference High Register) selects the
highest frequency allowed before a System reset (or interrupt) is
generated. Either RC or OSC drives the clock out (CKOUT)
signal.
-
CMU_FRL (Frequency Reference Low Register) selects the
lowest frequency allowed before an interrupt is generated.
-
CMU_STAT (CMU Status Register) contains the following
status bits:
-
CRF (CMU Reset Flag bit) is set when the CMU causes a
Reset.
-
RON (CMU Reset condition ON status bit) is set when a
Reset condition is detected.
-
CKON2 (MUX2 status bit) indicates which clock (RC or
OSC) drives the CMU.
-
CKON1 (MUX1 status bit) indicates which clock (PLLOUT or
OSC) drives the Frequency Meter.
-
CKON0 (MUX0 status bit) indicates which clock (RC or
OSC) drives the clock out (CKOUT) signal.
-
CMU_IS (CMU Interrupt Status Register) contains the
following status bits:
-
ROI (Reset ON Interrupt pending bit) is set when when
the RON bit sets.
-
FLL (Clock Frequency Less Than Low Reference Pending
bit.) is set when MCLK is less than the low frequency (LFREF)
reference value.
-
EOC (End of Counter Pending bit.) is set when the number
of OSC pulses reaches EOC[7:0] times 512.
-
OLR (Oscillator Frequency Less Than RC Frequency Pending
bit) indicates that the Main oscillator frequency (OSC) is less
than the Backup oscillator frequency (RC).
-
CMU_IM (CMU Interrupt Mask Register) contains the
following status bits:
-
ROIM (Reset ON Interrupt Mask bit) is set to enable the
ROI interrupt.
-
FLLM (Clock Frequency Less Than Low Reference Interrupt
Mask bit.) is set to enable the FLL interrupt.
-
EOCM (End of Counter Interrupt Mask bit.) is set to
enable the EOC interrupt.
-
OLRM (Oscillator Frequency Less Than RC Frequency
Interrupt Mask bit) is set to enable the OLR interrupt.
-
CMU_RCCTL (RC Oscillator Control Register) contains the
4-bit value used to adjust the RC oscillator.
-
CMU_FDISP (Frequency Display Register) contains the
current Measured Frequency.
-
CMU_EOCV (End Of Count Value Register) contains the
Oscillator Count Value which generates an EOC interrupt when
reached.
-
CMU_WE (Write Enable Register) enables CMU write access
by writing hex values "50FA" followed by "AF05" to this register.
Writing any other value disables CMU write access.
Core & Memory and Peripheral Clocks
-
FOSC (External Oscillator) is the value (in MHz) of the
external oscillator used for the source clock signal.
-
FEXT(Real-Time Clock) is the value (in kHz) of the
external oscillator used for input to the real-time clock.
-
FRC is the output of either the system PLL, or the CK_AF
alternate clock source is enabled.
-
MCLK (Main Clock) is the clock used for the CPU,
internal memory, EMI and the PRCCU.
Boot Control Input Pin VTREG
Data Type: bit
The BOOTEN VTREG allows you to control the built-in
boot options of the STR71x device.
When BOOTEN is 0, the device is in User mode and simulates
executing code in flash memory mapped a 0x0.
When BOOTEN is 1, the BOOT0 and BOOT1 settings in the
PCU_BOOTCR register allow the STR71x device to
boot from one of the following:
- the on-chip bootloader in System Memory,
- code stored in internal RAM mapped at 0x0, or
- code stored in External RAM mapped at 0x0.
Clock Input VTREG
Data Type: unsigned long
Hardware Standby Pin VTREG
Data Type: bit
HDLC Clock Input VTREG
Data Type: unsigned long
Peripheral Clock 1 VTREG
Data Type: unsigned long
Peripheral Clock 2 VTREG
Data Type: unsigned long
RCLK Output VTREG
Data Type: unsigned long
SmartCard Clock VTREG
Data Type: unsigned short
USB Clock Input VTREG
Data Type: unsigned long
