Peripheral Simulation

For STMicroelectronics STR750FV0 — APB Bridge

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.

These simulation capabilities are described below.

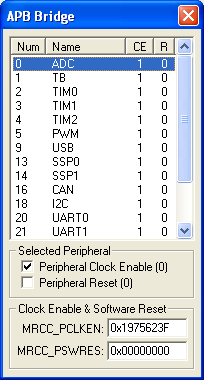

APB Bridge Dialog

APB Bridge

The APB Bridge dialog configures the low-power, APB Bridge of the STR7x device. This bridge interfaces the serial peripherals such as I2C, UART, USB, etc.

Selected Peripheral

  • Peripheral Clock Enable is checked to enable the peripheral clock for the selected peripheral.
  • Peripheral Reset is checked to reset the selected peripheral.

Clock Disable & Software Reset

  • MRCC_PCLKEN (Clock Enable Register) contains the peripheral clock disable bit settings.
  • MRCC_PSWRES (Software Reset Register) controls the reset of the APB peripherals.
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
