Peripheral Simulation

For STMicroelectronics STM32F103V8 — I2C2 Interface

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.
  • VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

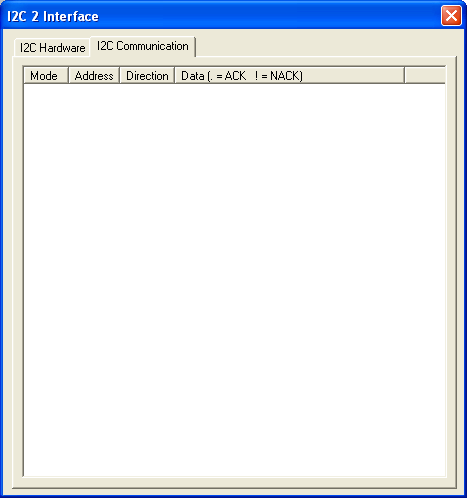

I2C Interface 2 - Communication Dialog

I2C Interface 2 - Communication

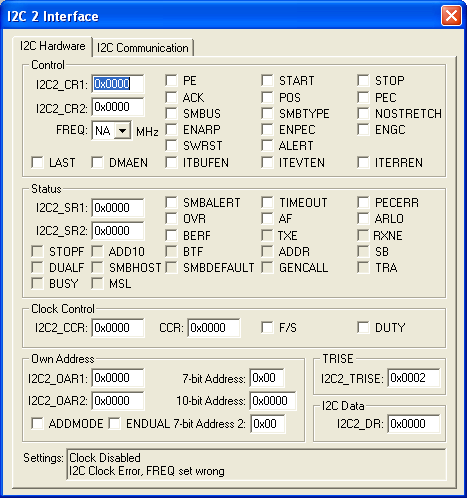

I2C Interface 2 - Hardware Dialog

I2C Interface 2 - Hardware

I2C2 Input VTREG
Data Type: unsigned short

I2C2 Output VTREG
Data Type: unsigned short

Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
