Peripheral Simulation

For STMicroelectronics STM32F103V8 — Analog/Digital Converter 1 (ADC1)

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.
  • VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

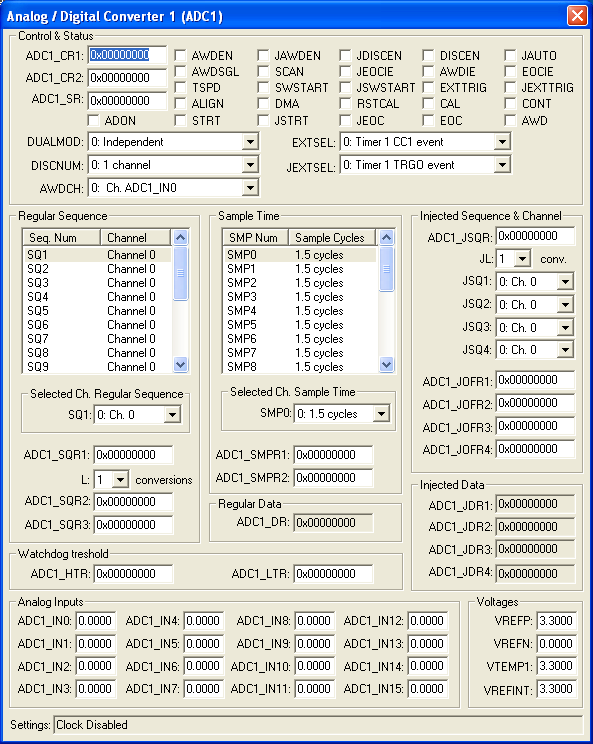

Analog / Digital Converter Dialog

Analog / Digital Converter

The Analog / Digital Converter dialog displays and configures the A/D converter. The controls in this dialog are separated into several logical groups.

Control and Status

  • ADC_CSR  (ADC Control & Status Register) contains the following control and status settings:
  • A (Channel Address) selects the channel to be sampled when external addressing (AXT) is enabled.
  • OR (Overrun) is set when one of the data channels is overwritten before being read.
  • AXT (Addressing External Enable) is set to allow single-channel conversion. If reset, channels are addressed in a round-robin fashion.
  • IEn (Interrupt Enable - Channel n) is set to enable interrupts for the corresponding channel n.
  • DAn (Data Available - Channel n) is set when new sample data is ready to be read for channel n.


  • ADC_CPR (ADC Prescaler Register) contains the following prescaler settings:
  • PRESC (Prescaler Value) is the 12-bit PCLK2 clock divisor used to produce the oversampling clock.
  • Fmod(Hz) (Modulator Oversampling Frequency) is the sampling frequency input to the ADC.
  • Rate(Hz) (Modulator Oversampling Rate) is oversampling rate based on the prescaling factor (PRESC).


  • ADC_DATAn (ADC Data Register) contains the raw converted result of the ADC conversion for channel n.
  • DATAn (Converted Data) contains the converted data value for channel n.

Analog Inputs

  • AINn (Analog Input) contains the simulated analog input voltage (VTREG AINn) for channel n.

Reference & Center

  • VREF is the feedback reference voltage used for the ADC.
  • VCM is the midpoint between the voltage range of the ADC converter and the feedback reference voltage (VREF).

A/D Converter Clock VTREG
Data Type: unsigned long

ADC1_INx Input Voltage VTREG
Data Type: float

The ADC1_INx VTREGs set the analog input voltages for simulated A/D converters. The ADC1_INx VTREGs represent the inputs to the analog input pins of the MCU for analog input 0, 1, 2, and so on. ADC1_IN0 sets the input voltage for analog input #0, ADC1_IN1 sets the input voltage for analog input #1, etc. If you have properly configured the analog inputs, the following commands (typed in the debugger's Command Window) input the voltages specified.

ADC1_IN0 = 0.000  /* Analog Input 0 = 0.000 volts */
ADC1_IN1 = 2.500  /* Analog Input 1 = 2.500 volts */
ADC1_IN2 = 4.999  /* Analog Input 2 = 4.999 volts */

You may create a debugger signal function to periodically change the value of the A/D input. The following signal function increases the A/D Channel 1 input voltage by 0.1 volts each second.

signal void ADC1_IN1_sig (void) {
float f;

for (f = 0.0; f < 5.0; f += 0.1)
  swatch (1.0);                  // Delay 1 second
  ADC1_IN1 = f;                  // Set ADC1_INx1 Voltage
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
