For STMicroelectronics STR731FV1 — Pulse Width Modulators (PWM0-PWM5)
Simulation support for this peripheral or feature is comprised of:
- Dialog boxes which display and allow you to change peripheral configuration.
- VTREGs (Virtual Target Registers) which support I/O with the peripheral.
These simulation capabilities are described below.
I/O Port 1 Dialog
The GPIO Port 1 Dialog controls the direction of the general
purpose port pins. You may use the following controls to select and
configure the GPIO port settings.
GPIO_PC0 - GPIO_PC2 (Port Bit Configuration
Registers) specify how each I/O Port bit is configured (input,
output, alternate function, etc.
GPIO_PD checkboxes represent the data bits
Pins allows you to manually set or clear
individual pins for this port.

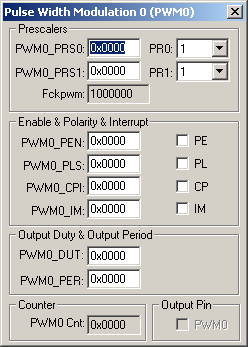

Pulse Width Modulation Dialog
The Pulse Width Modulator dialog configures Pulse Width Modulator
PWM0_PRS0 (PWM Prescaler 0) contains the divider factor
(1, 2, 4, 8,..., 128) applied to the input clock.
PR0 (Prescaler Register 0) selects the value (0-7) that
corresponds to the primary divider factor (0=1, 1=2, 2=4, 3=8,...,
PWM0_PRS1 (PWM Prescaler 1) contains the divider factor
(1-32)applied to the output of the the first prescaler.
PR1 (Prescaler Register 1) selects the value (0-31) that
corresponds to the secondary divider factor.
Enable & Polarity Interrupt
PWM0_PEN (PWM Enable Register) contains the PWM Enable
- PE (PWM Enable) is set to enable the PWM.
PWM0_PLS (PWM Output Polarity Selection Register)
controls the polarity (inverted or not inverted) of the PWM
- PL (PWM Polarity) is set to invert the PWM output.
PWM0_CPI (PWM Compare Period Interrupt Register)
contains the Compare Period Interrupt bit (CP) bit.
CP (PWM Compare Period) is set to indicate that the
compare register value has been reached.
PWM0_IM (PWM Interrupt Mask Register) contains the
Compare Period Interrupt Mask bit (IM) bit.
IM (PWM Interrupt Mask) is set to enable the PWM
Output Duty & Output Period
PWM0_DUT (PWM Output Duty Register) contains the number
of clocks that the output signal is at a high level, or low if
polarity is inverted.
PWM0_PER (PWM Output Period Register) contains the
number of clocks that define the length of the entire PWM
Digital I/O Ports 0-2 (16-Bit) VTREG
Data Type: unsigned short
The PORTx VTREGs represent the I/O pins of the simulated
MCU for Port 0, Port 1, and so on. PORT0 represents Port 0, PORT1
represents Port 1, etc. You may read PORTx to determine the
state of the output pins of that port. For example, in the command
window you may type,
to obtain value corresponding to the set pins of Port A. You may
also change the input values of port pins by changing the value of
the VTREG. For example,
sets the upper four port pins of Port 0 to a value of 1 and
all other port pins to a value of 0. You may use the bitwise
operators AND(&), OR(|) and XOR(^) to change individual bits of
the PORTx VTREGs. For example:
PORT0 |= 0x00000001; /* Set P0.0 Pin */
PORT1 &= ~0x00000200; /* Clr P1.9 Pin */
PORT0 ^= 0x00800000; /* Toggle P0.23 Pin */
