For Analog Devices ADuC7025 — I²C Interface: I2C0
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

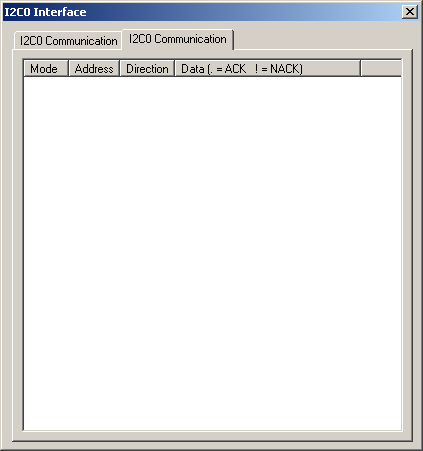

I2C0 Interface - Communication Dialog
The I2C0 Interface - Communication dialog displays the I2C communication activity on the I2C bus. The message Mode, Address, Direction and data message content are displayed for each message. To clear the message display, double-click anywhere in the message display area.

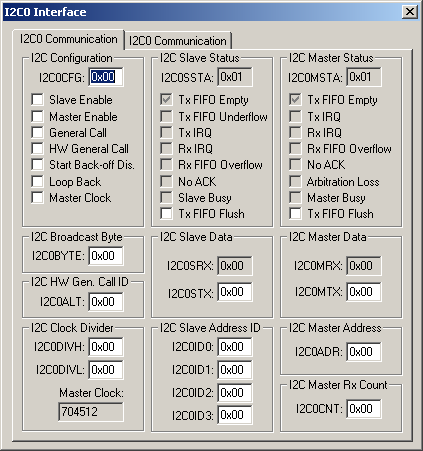

I2C0 Interface - Control Dialog
The I2C0 Interface - Controller dialog configures one of the on-chip I2C controllers. Each I2C controller fully support master or slave operations. The following groups control the simulation of the I2C Interface:
I2C Configuration Group
I2C Slave Status Group
I2C Master Status Group
I2C Broadcast Byte
I2C HW Gen. Call ID
I2C Clock Divider Group
I2C Slave Data Group
I2C Slave Address ID Group
I2C Master Data Group
I2C Master Address Group
I2C Master RX Count Group
