For Analog Devices ADuC7027 — UART

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.
  • VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

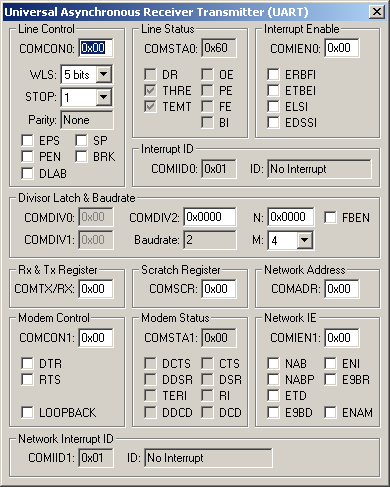

UART Dialog

UART

The Universal Asynchronous Receiver Transmitter (UART) Dialog configures UART. A UART transfers serial data to and from external devices and the ARM controller. The UART can be configured in a variety of ways to suit the external serial device.

Line Control Group

  • COMCON0 (Communication Control Register) displays the combined control information for the following:
  • WL (Word Length) selects the data character length of 5, 6, 7 or 8 bits per character.
  • STOP (Number of Stop Bits) selects the number of stop bits to be sent with each character.
  • Parity displays odd, even or no (forced "0" or "1") parity.
  • EPS (Even Parity Select) is set for even parity and reset for odd parity.
  • PEN (Parity Enable) is set to enable parity generation and checking.
  • DLAB (Divisor Latch Access Bit) is set to calculate the baud rate based on the Divisor Latch register values.
  • SP (Stick Parity) is set to force parity values based on the EPS and PEN settings.
  • BRK (Break Control) is set to enable transmission of a Break.

Line Status Group

  • COMSTA0 (Communication Status Register) displays the combined status information for the following:
  • DR (Data Ready) set when the UART receives at least 1 character and the receiver hold register is not empty.
  • THRE (Tx Holding Register Empty) is set when the transmission hold register is empty.
  • TEMT (Transmitter Empty) set if there are no characters in the transmitter.
  • OE (Overrun Error) set if the controller detects an overrun condition since the last status reset command.
  • PE (Parity Error) set if the controller detects at least 1 false parity bit since the last status reset command.
  • FE (Framing Error) set if the controller detects a framing error since the last status reset command.
  • BI (Break Interrupt) is set when a Break condition occurs while receiving data.

Interrupt Enable Group

  • COMIEN0 (Communication Interrupt Enable Register) displays the combined interrupt information for the following:
  • ERBFI (Enable Receive Buffer Full Interrupt) is set to enable the interrupt when the buffer fills during a reception.
  • ETBEI (Enable Transmit Buffer Empty Interrupt) is set to enable the interrupt when the transmit buffer empties.
  • ELSI (Receive Status Interrupt Enable) is set to enable interrupt generation if DR, OE, PE or FE bits are set.
  • EDSSI (Modem Status Interrupt Enable) is set to enable interrupt generation if DCTS, DDSR, TERI or DDCD bits are set.

Interrupt ID Group

  • COMIID0 (Interrupt Identification Register) contains the Interrupt Identification status.
  • ID displays the interrupt type(Line Status, Receive Buffer Full, Transmit Buffer Empty, Modem Status).

Divisor Latch & Baudrate Group

  • COMDIV0 (Divisor Latch LSB Register) contains the lower 8-bit value that the MCU divides into the MCU clock (PCLK) to generate the UART baud rate.
  • COMDIV1 (Divisor Latch MSB Register) contains the upper 8-bit value that the MCU divides into the MCU clock (PCLK) to generate the UART baud rate.
  • COMDIV2 (16-bit Fractional Baud Rate Divide Register) contains the setting to allow a wider range and more accurate baud rates using the M and N values below.
  • Baudrate is the computed UART baud rate.
  • N the 11-bit numerator value of the fractional baud rate divide register.
  • M the 2-bit multipier value of the fractional baud rate divide register.
  • FBEN (Fractional Baudrate Generator Enable) is set to enable the fractional baudrate generator feature.

Rx & Tx Register Group

  • COMTX/RX (Transmit and Receive Register) when receiving, contains the oldest character received. When transmitting, it contains the newest character to be transmitted.

Scratch Pad Group

  • COMSCR (Scratch Pad Register) has no effect on the UART operation. It is used for temporary storage.

Network Address Group

  • COMADR (Network Address Register) When the UART is enabled in network addressable mode, this register contains the address to be checked for by the UART.

Modem Control Group

  • COMCON1 (Modem Control Register) contains the DTR, RTS and Loopback modem controls.
  • DTR Control (Data Terminal Ready Control) is the DTR modem output level.
  • LOOPBACK (Loopback Mode) is set to perform diagnostic loopback testing.

Modem Status Group

  • COMSTA1 (Modem Status Register) contains the following status from the modem input signals:
  • DCTS (Delta Clear to Send) is set when the state of modem input CTS changes.
  • DDSR (Delta Data Set Ready) is set when the state of modem input DSR changes.
  • TERI (Trailing Edge Ring Indicator) is set when a low-to-high transition occurs on the RI input.
  • DDCD (Delta Data Carrier Detect) is set when the state of modem input DCD changes.
  • CTS (Clear To Send) is the complement of the CTS input signal.
  • DSR (Data Set Ready) is the complement of the CTS input signal.
  • RI (Ring Indicator) is the complement of the CTS input signal.
  • DCD (Data Carrier Detect) is the complement of the CTS input signal.

Network IE Group

  • COMIEN1 (Network Enable Register) contains the combined information for the following:
  • NAB (Network Address Bit) is set to transfer the address of the slave.
  • NABP (Network Address, Interrupt Polarity)
  • ETD (Transmitter Pin Driver Enable) is set to configure the SOUT pin as an output in slave or multi-master mode.
  • E9BD (Enable 9-Bit Data Words) is set for 9-bit data and cleared for 8-bit data.
  • ENI (Enable Network Interrupt) is set to enable netrok interrupts.
  • E9BR (Enable 9-Bit Receive) is set to receive 9-bit data.
  • ENAM (Enable Network Address Mode) is set to enable network address mode.

Network Interrupt ID Group

  • COMIID1 (Network Interrupt Register) contains the interrupt identifier value.
  • ID (Identifier) display the interrupt identifier in text format.

SIN VTREG
Data Type: unsigned int

The SIN VTREG represents the serial input of the simulated microcontroller. Values you assign to SIN are input to the serial channel. You may assign input using the command window. For example,

SIN='A'

causes the simulated microcontroller serial input to receive the ASCII character A. If you want to use the SIN VRTEG to simulate reception of multiple characters, you must be sure to delay for at least one character time between successive assignments to SIN. This may be done using a signal function. For example:

signal void send_cat (void) {
swatch(0.01);  /* Wait 1/100 seconds */
SIN='C';       /* Send a C */
swatch(0.01);
S0IN='A';
swatch(0.01);
S0IN='T';
}

You may use the SIN VTREG to input data (5-8 bits), parity, frame error, and break condition. SIN Format (16-bit Register)

  • Bits 0-7: Data (5, 6, 7, or 8 bit)
  • Bit 8: Parity bit Value
  • Bit 9: Parity bit Presence (0=Not present, 1=Present)
  • Bit 10: Invalid Stop bit (0=Normal, 1=Invalid)

For example:

SIN=0x0074 // Data = 0x74,  No Parity bit
SIN=0x0274 // Data = 0x74,  Parity bit = 0
SIN=0x0374 // Data = 0x74,  Parity bit = 1
SIN=0x0474 // Data = 0x74,  No Parity bit
           // Invalid Stop bit - Frame Error
SIN=0x0400 // Break Condintion

In addition to the SIN VRTEG, the serial window allows you to input serial characters by simply typing. Serial characters that are transmitted byt the simulated microcontroller appear in the serial window.

SOUT VTREG
Data Type: unsigned int

The SOUT VTREG represents the serial output from the simulated serial port. Whenever the simulated serial port transmits a character, the value transmitted is automatically assigned to SOUT (which is read-only). You may read the value of SOUT to determine the character transmitted by your simulated program. For example,

SOUT

outputs the value of the last character transmitted by the serial port.

SOUT Format (16-bit Register)

  • Bits 0-7: Data (5, 6, 7, or 8 bits)
  • Bit 8: Parity bit Value
  • Bit 9: Parity bit Presence (0=Not present, 1=Present)
  • Bit 10: Invalid Stop bit (0=Normal, 1=Invalid)

For example:

S0OUT & 0x00FF // Data
S0OUT & 0x0200 // Parity bit is present
S0OUT & 0x0100 // Parity bit value (0=0, 0x0100=1)

Note that you cannot assign values to the SOUT VTREG. You may use the SOUT VTREG in a script to process transmitted data. For example,

signal void sout_sig (void) {
while (1)
  {
  wwatch(SOUT);      /* wait for something in SOUT */
  printf ("Transmitted a %2.2X\n", (unsigned) SOUT);
  }
}

STIME VTREG
Data Type: unsigned char

The STIME VTREG allows you to control the timing of the simulated serial port.

  • A value of 1 (which is the default) indicates that the serial port timing is identical to the target hardware. Use this value when you want to see the effects of baud rate on the serial port I/O.
  • A value of 0 indicates that all serial input and output occur instantaneously. Use this value when you don't care about any baud rate effects or when you want serial output to be fast.

For example:

STIME = 0   /* Set the Serial Port for FAST timing */
STIME = 1   /* Set the Serial Port for accurate timing */
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
