For Analog Devices ADuC7022 — Programmable Logic Array
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

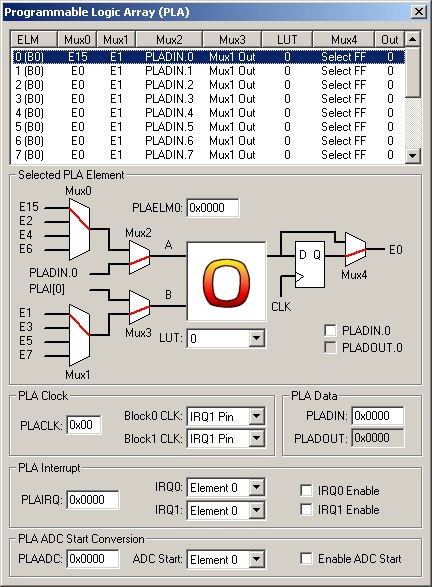

Programmable Logic Array Dialog
The Programmable Logic Array Dialog simulates the built-in interconnected PLA blocks consisting of 16 PLA elements. Each element (ELM) is selected and then configured by clicking on the logic inputs and selecting the logical function from the Look Up Table (LUT) to achieve the desired logic output. You may select and configure the PLA using the following control groups:
ELM Selection List
One row in this list represents a logic element. Selecting a line changes the selected element display.
Selected PLA Element
Click on the black lines to "connect" or route the inputs to the logic element. Select the logic element from the LUT drop-down list.
PLA ADC Start Conversion
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
