Peripheral Simulation

For Analog Devices ADuC7020 — Digital/Analog Converter 3

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.
  • VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

DAC 3 Dialog

DAC 3

The DAC 3 dialog displays and configures the Digital/Analog converter. The controls in this dialog are separated into several logical groups.

DAC Control Group

  • DAC3CON (Control Register) displays and configures the D/A Converter control register.
  • DACCLR (DAC Clear) is set to enable normal DAC operation. If reset, the data register of the DAC is set to zero.
  • DACCLK (DAC Update Rate) is set to update the DAC using Timer 1. If reset, the core clock is used.
  • DACBYP (Buffer Bypass) is set to bypass the output buffer. Resetting this bit buffers the DAC output.
  • Range (DAC Range Setting) selects the voltage range.

DAC Data Group

  • DAC3DAT (Data Register) contains the 12-bit digital data to be converted.

DAC Output Group

  • DAC3 (Output Register) displays the converted analog voltage value.

GPIO Port 3 Dialog

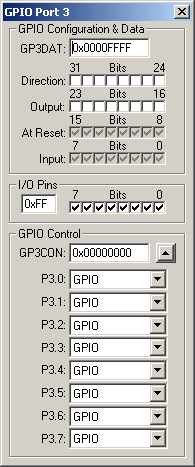

GPIO Port 3

The GPIO Port 3 Dialog controls the direction of the general purpose port pins. You may use the following controls to select and configure the GPIO port settings.

GPIO Configuration & Data Group

  • GP3DAT (Configuration and Data Register) contains the Direction, Output and At Reset settings.
  • Direction bits are checked to configure a pin for output or reset for input.
  • Output checkboxes represent the data bits output.
  • At Reset checkboxes represent the state of the port pins after a reset.
  • Input checkboxes show the value of the data on an input port.

I/O Pins Group

  • The I/O Pins section allows you to manually set or clear individual pins for this port.

GPIO Control Group

  • GP3CON (Control Register) controls the function of each pin for this port.
  • P3.x (Port 3 - Pins 0-7) selects the function to be assigned to this pin from a drop-down list.

DACx VTREG
Data Type: float

DAC0 Output Voltage

Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
