Peripheral Simulation

For NXP (founded by Philips) LPC2294 — A/D Converter (8-Channels)

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.

These simulation capabilities are described below.

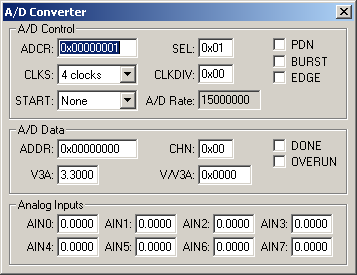

A/D Converter Dialog

A/D Converter

The A/D Converter dialog displays the status registers for all of the A/D converters supported by this device. The Analog Input Channels, listed at the bottom of the dialog, allow you to specify the voltage for each analog input.

A/D Control

  • ADCR (A/D Control Register) contains the following control bits for the A/D controller:
  • CLKS (Conversion Clocks)selects the number of clocks used for each conversion in Burst mode and the bit accuracy.
  • START controls when and if the an A/D conversion is started.
  • SEL selects which pins of the analog input (AINn) are to be sampled and converted.
  • CLKDIV (Clock Divisor) is the value (minus 1) divided into the VPB clock to produce the A/D Rate.
  • A/D Rate displays the A/D clock rate.
  • PDN (Power Down) is set if the A/D is operational. When reset, the A/D is in power down mode.
  • BURST is set to use the number of clocks specified in BURST. If reset, conversions are software controlled and requires 11 clocks.
  • EDGE is set to start the conversion on a rising edge. If reset, conversion starts on a falling edge.

A/D Data

  • ADDR (A/D Data Register) contains the following bits for controlling A/D data conversion:
  • CHN (Channel) is the channel containing the converted bits.
  • V3A (Analog 3.3 Volts) input power voltage typically the same as V3 but may be isolated to reduce noise.
  • V/V3A contains the current AINn result divided by the analog input power pin.
  • DONE is set when the A/D conversion completes.
  • OVERRUN is set if one or more conversions were overwritten before the current conversion completed.

Analog Inputs

  • AINn (Analog Input Channels n) are used for setting voltage input to the ADC. These inputs are alternate functions for Port pins. The text box displays the analog voltage value for each input channel.
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
