For NXP (founded by Philips) LPC2294 — Pin Connect Block
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

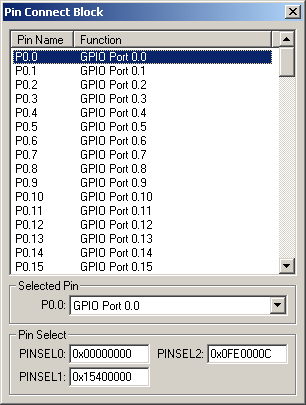

Pin Connect Block Dialog
The Pin Connect Block Dialog allow the user to configure pins P0.0 - P0.31 of the MCU based on functions required. Selecting a pin allows you to change the function for that pin.
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
