For Atmel AT91FR40162 — Advanced Interrupt Controller
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

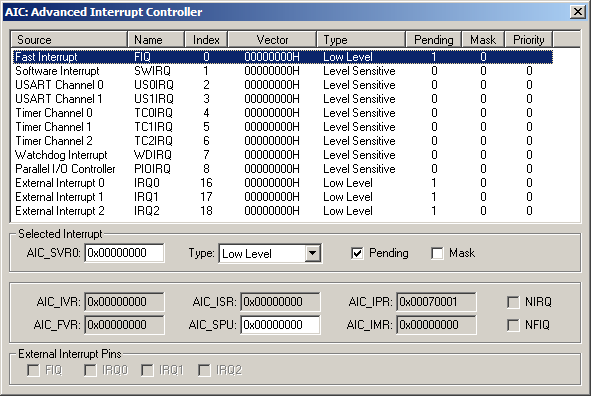

Advanced Interrupt Controller Dialog
The Advanced Interrupt Controller Dialog (available from the Peripherals menu) displays the status of all simulated ARM interrupts. The interrupt source, name, index, vector and type, and pending, mask and priority level status are displayed.
To configure an interrupt, select the desired interrupt from the list and then use the controls in this section to change the vector address (AIC_SVR2), Type and Priority level for that interrupt. Use the Pending checkbox to trigger an interrupt, and the Mask checkbox to enable an interrupt.
External Interrupt Pins
