For Atmel AT91M55800A — External Bus Interface
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

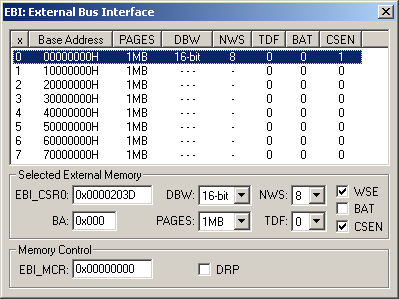

Exernal Bus Interface Dialog
The External Bus Interface Dialog controls bus access and chip selects for up to 8 external memory or peripheral devices. The base address, page size, bus width, wait states, and bus access type settings for each chip select are displayed at the top of the dialog. Once selected, a chip select is configured using the following controls:
Selected External Memory
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
