For Atmel T8xC251G2D — I²C Interface
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.
I²C Interface Communication Dialog
The Controller Area Network (CAN) Controller Communication tab displays the CAN communication activity on the CAN bus. The Message number, States, Message Identifier, Message Direction, Channel, Data Length and Data content are displayed for each message. To clear the message display, double-click anywhere in the message display area.

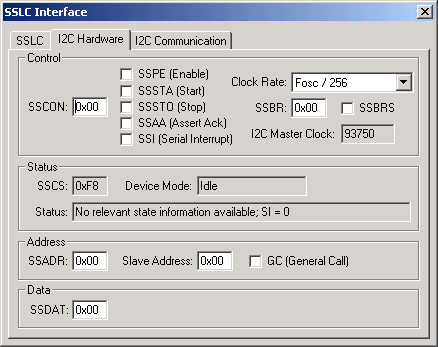

I²C Interface Hardware Dialog
The I²C Hardware Interface dialog displays all configuration options for the on-chip I²C controller. You may interactively alter and view these options using the dialog controls.
