For Infineon SAB 83C517A-5 — Compare/Capture Register
Simulation support for this peripheral or feature is comprised of:
These simulation capabilities are described below.

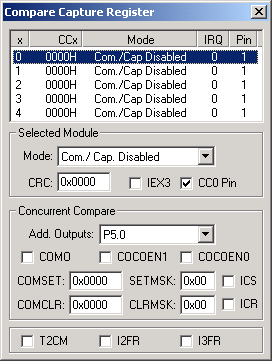

Compare Capture Register Dialog
The Compare Capture Register Dialog controls the compare and capture functions. The compare function generates an output signal and interrupt when the Timer 2 register equals one of the preset values. The capture function stores the Timer 2 value and generates an interrupt on an external event, or when the capture registers are modified.
System Module Group
Concurrent Compare Group
Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
