Embedded Artists EA iMX RT1062 Developers Kit Ver 1.0

MIMXRT1062CVL5A

Mounted Device: MIMXRT1062CVL5A
Compatible Devices:
MIMXRT1062????A i.MX RT1060
Debug Interface:
JTAG/SW JTAG/SW

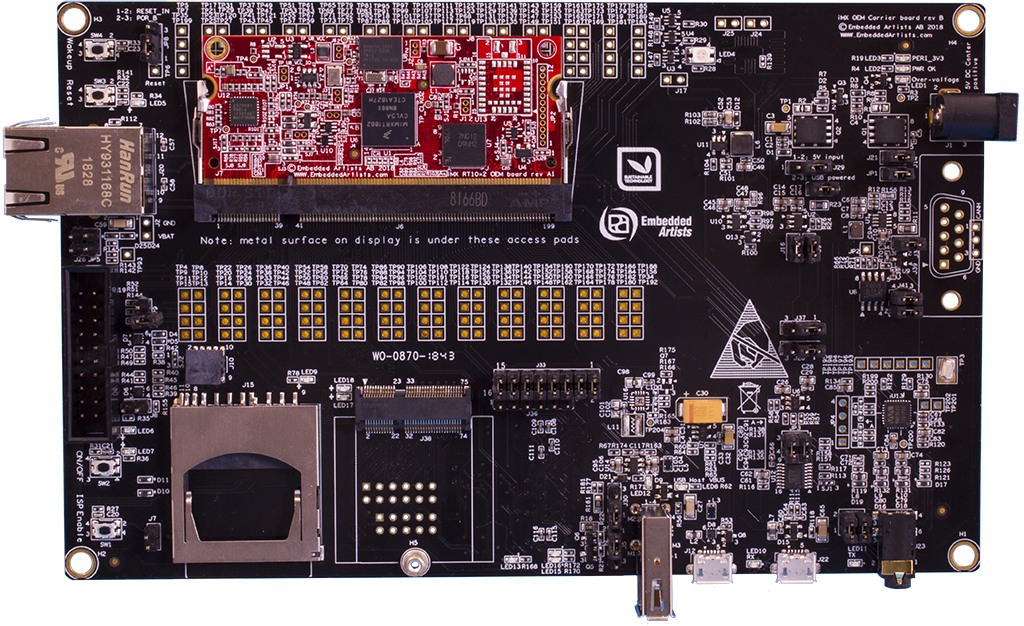

Embedded Artists iMX RT1062 Developer's Kit

Connectors USB, CAN, RS232, Ethernet
  • USB:1 x USB OTG interface with ESD protection
  • USB:1 x USB Host interface with ESD protection
  • CAN:1 x CAN transceiver with ESD protection and termination
  • RS232:1 x UART-to-USB FTDI bridge for UART interface with ESD protection
  • Ethernet:1 x 10/100 Mbps Ethernet RJ45 connector
Controls Push-buttons
  • Push-buttons:4 x Push-Buttons: Reset, Wakeup, On/Off, ISP enable
Other LED, GLCD
  • LEDs:2 x Power, User
  • GLCD:1 x 480.272 4.3 inch 480x272px LCD
Core Components MIMXRT1062CVL5A, 5 V Power
  • Oscillator:24 MHzCrystal Oscillator
  • Power Supply:5 V 5V DC supply voltage, either via micro-AB USB connector or 2.1mm power jack connector
  • Device:MIMXRT1062CVL5A
Development Tools
Examples
  • Hello World
  • ELCDIF LUT
  • ELCDIF RGB
  • GPIO input interrupt
  • GPIO LED output
  • QTMR timer
