Evaluation Board and Starter Kit

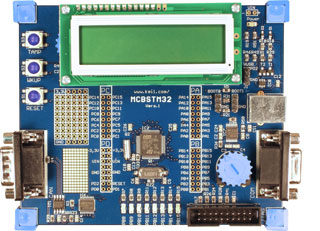

MCBSTM32 Evaluation Board

The Keil MCBSTM32 Evaluation Board enables you to create and test working programs based on the STMicroelectronics STM32 family of ARM Cortex™-M3 processor-based devices.


  • 72MHz STM32F103RB ARM Cortex™-M3 processor-based MCU in 64-pin LQFP
  • On-Chip Memory: 128KB Flash & 20KB RAM
  • USB 2.0 Full Speed Device Interface
  • CAN and UART interfaces
  • I2C, SPI and GPIO via PCB headers
  • Character LCD (16x2)
  • Analog Voltage Control for ADC Input
  • 8 LEDs and 3 push-buttons
  • Power via USB connector
  • Debug Interface Connectors
    • 20-pin ARM Standard JTAG (0.1 inch connector) RoHS compliance

Evaluation Software

The MCBSTM32 Evaluation Board and Starter Kit include the MDK-ARM Evaluation Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCBSTM32 and a Quickstart guide are included.

Ordering Information

The MCBSTM32 is available as a stand alone evaluation board or as a starter kit which includes the
ULINK-ME debug adapter.

  • MCBSTM32: MCBSTM32 evaluation board
  • MCBSTM32UME: MCBSTM32 starter kit (includes ULINK-ME)
