The OKI ML67Q4051 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

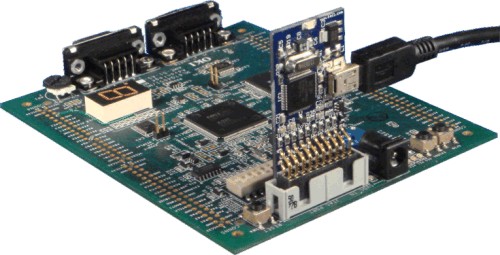

ULINK-ME Adapter Connected to the ML67Q4051 Board
To download and run an example project using ULINK-ME with the OKI ML67Q4051 Board:
- Connect the ULINK-ME Adapter to the JTAG connector on the OKI ML67Q4051 evaluation board.
- Connect the power adapter to the board.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\OKI\ML67Q4051\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
