The Keil MCBSTR730 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

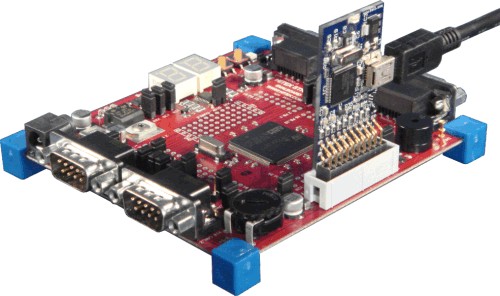

ULINK-ME Adapter Connected to MCBSTR730
To download and run an example project using ULINK-ME with the Keil MCBSTR730 Board:
- Connect the ULINK-ME Adapter to the JTAG port MCBSTR730 evaluation board.
- Make sure that Jumper M0 and M1 are OFF.
- Connect power to the board using an external 7 - 12 Volt DC power supply.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCBSTR730\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
