The Keil MCB2140 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

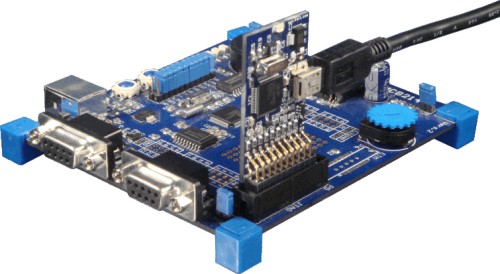

ULINK-ME Adapter Connected to MCB2140
To download and run an example project using ULINK-ME with the Keil MCB2140 Board:
- Connect the ULINK-ME Adapter to the JTAG port of the MCB2140 evaluation board.
- Make sure that Jumper J9 - JTAG is ON.
- Connect power to the board using a standard USB cable. Connect the other end of the USB cable to an unused USB connector on your PC.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCB2130\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
