ULINK®-ME User's Guide
Introduction Hardware Description Setting Up and Using ULINK-ME Evaluation Boards Analog Devices
Analog Devices ADuC702x Analog Devices ADuC712x Ashling Ashling LPC2100 Atmel Atmel EB40A Freescale Freescale MAC7100 Keil Keil MCB2100 Keil MCB2103 Keil MCB2130 Keil MCB2140 Keil MCB2300 Keil MCBSTM32 Keil MCBSTR7 Keil MCBSTR730 Keil MCBSTR750 Keil MCBSTR9 Luminary Luminary Stellaris Boards Nohau Nohau LPC3000 OKI OKI ML674000 OKI ML67Q4003 OKI ML67Q4051 OKI ML67Q4061 OKI ML67Q5003 OKI ML69Q6203 Phytec Phytec AT91M55800A Phytec LPC229x Phytec LPC3180 Sharp Sharp LH75401 TI TI TMS470R1A256 TI TMS470R1B1M TQ Systems TQ Systems TQMX16xUKeil MCB2103
The Keil MCB2103 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

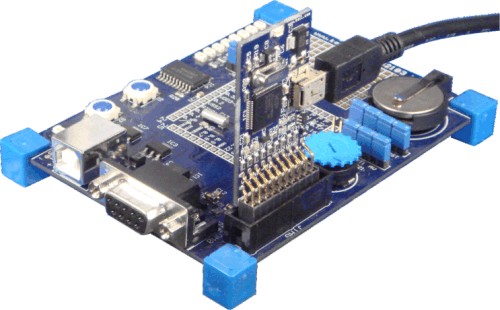

ULINK-ME Adapter Connected to MCB2103
To download and run an example project using ULINK-ME with the Keil MCB2103 Board:
- Connect the ULINK-ME Adapter to the JTAG port MCB2103 evaluation board.
- Make sure that Jumper J9 - JTAG is ON.
- Connect power to the board using a standard USB cable. Connect the other end of this cable to an unused USB port on your PC.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCB2103\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
