The Keil MCB2100 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

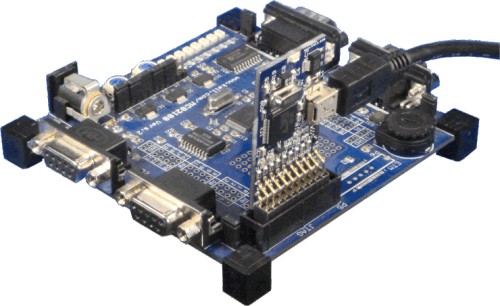

ULINK-ME Adapter Connected to MCB2100
To download and run an example project using ULINK-ME with the Keil MCB2100 Board:
- Connect the ULINK-ME Adapter to the JTAG port MCB2100 evaluation board.
- Make sure that Jumper J9 - JTAG is ON.
- Connect power to the board using an external 6 Volt DC power supply. The connection uses a 5.5mm barrel plug.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCB2100\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
