ULINK-ME User's Guide
Freescale MAC7100
The Freescale MAC7100 Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

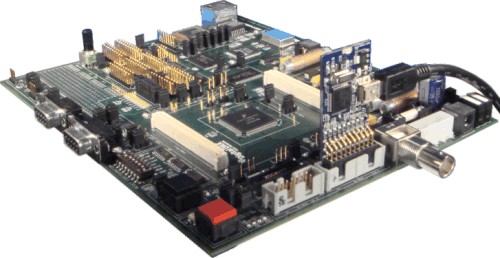

ULINK-ME Adapter Connected to MAC7100
To download and run an example project using ULINK-ME with the Freescale MAC7100 Board:
- Connect the ULINK-ME Adapter to the JTAG port MAC7100 evaluation board.
- Connect the power adapter to the board.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\FREESCALE\MAC7100\BLINKY\.
-
Click the Download
button to download the program to the target board.
-
Click the Debug button to start the
debugger.
-
Click the Run
button to start the program running on the target board.
